Simply45 S45-1550 CAT5e Shielded Internal Ground, Pass Through Rj45
S45-1550|G0-S451550
Simply45 S45-1550 CAT5e Shielded Internal Ground, Pass Through Rj45
S45-1550|G0-S451550
Simply45
Simply45 S45-1550 CAT5e Shielded Internal Ground, Pass Through Rj45
S45-1550 | G0-S451550
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Simply45™ is the industry-leading brand for RJ45 modular plug innovation and performance solutions.

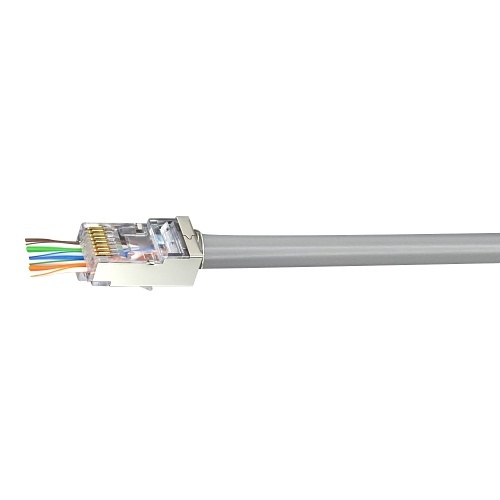

Our S45-1550 shielded with internal ground pass through RJ45 modular plugs incorporate the following features:
Single Piece Design. The S45-1550 is a single piece fully shielded with internal ground pass through RJ45 modular plug for shielded (STP) LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6a, Cat6, and Cat5e.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45 pass through RJ45 modular plugs uses only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors.
Main Features
- Cat 5e Shielded RJ45 Modular Plug
- Supports Solid and Stranded LAN Cables
- Gold-Plated 3-Prong Pins
General Information
Name: Simply45 S45-1550 CAT5e Shielded Internal Ground, Pass Through Rj45
Category: Simply45, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 817777016819
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number G0-S451550 Brand Name Simply45 Manufacturer SIMPLY45 LLC Manufacturer Part Number S45-1550 Packaged Quantity 50 Product Line Simply45 Product Model S45-1550 Product Name S45-1550 - Cat5e Shielded Internal Ground - Pass Through RJ45 Product Series Installer Product Type Network Connector
Cable Type Category 5e Contact Plating Gold Shielding Yes
TAA Compliant Yes
Connector Type RJ45 Network Male Number of Contacts 8
Color Blue Weight 5.57oz
Limited Warranty Lifetime
Environmental Certification RoHS Environmentally Friendly Yes Features 3 Prong Contact, 50µ Gold, Color Tinted, Crosstalk Protection, Far End Cross Talk (FEXT), Fire Retardant, Near End Cross Talk (NEXT), Plenum, PoE, PoE+, PoE++, Polycarbonate, Shielded, Solid, Stranded
