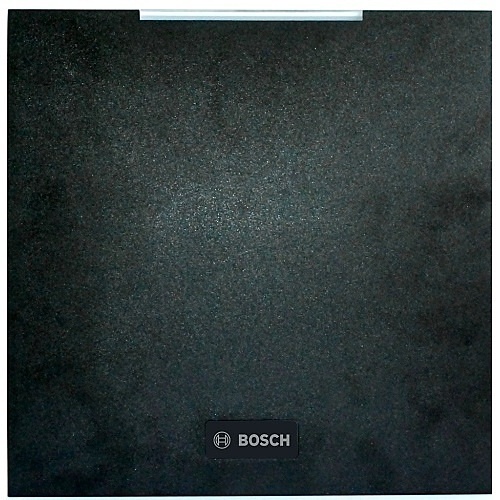

Bosch ARD-SER90-WI iCLASS/MIFARE Long Range Access Control Reader with Wiegand Interface
ARD-SER90-WI|DS-ARDSER90W
Bosch ARD-SER90-WI iCLASS/MIFARE Long Range Access Control Reader with Wiegand Interface
ARD-SER90-WI|DS-ARDSER90W
Bosch
Bosch ARD-SER90-WI iCLASS/MIFARE Long Range Access Control Reader with Wiegand Interface
ARD-SER90-WI | DS-ARDSER90W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The technology-independent readers support standard iCLASS, MIFARE classic, and MIFARE DESFire EV1. "Parking Hold" feature allows connection to a loop detector to ensure accurate detection of vehicles in parking lanes.
Two LECTUS secure 9000 units can operate one meter apart for "HI-LO" truck and car installations. iCLASS proximity cards that work with diversified keys of 64- bit length for two-way authentication, encrypted data is transmitted between the reader and card. Beeper and multicolored LED display controlled internally or by host.
Two LECTUS secure 9000 units can operate one meter apart for "HI-LO" truck and car installations. iCLASS proximity cards that work with diversified keys of 64- bit length for two-way authentication, encrypted data is transmitted between the reader and card. Beeper and multicolored LED display controlled internally or by host.
Main Features
- 13.56 MHz proximity compatible with access controllers with Wiegand interfaces
- Encrypted data transfer between card and reader.
- Supports multiple technologies (standard iCLASS, MIFARE, and MIFARE DESFire EV1)
- Proximity/long range reader with beeper and multicolored LED display
- Rugged, weatherized polycarbonate enclosure, designed to withstand harsh environments
General Information
Name: Bosch ARD-SER90-WI iCLASS/MIFARE Long Range Access Control Reader with Wiegand Interface
Category: Bosch, Access Control, Keypads & Readers, Long Range Readers
UPC Code: 800549743402
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number DS-ARDSER90W Brand Name Bosch Manufacturer Bosch Manufacturer Part Number ARD-SER90-WI Product Line LECTUS secure 9000 Product Model ARD-SER90MP-WI Product Name LECTUS secure9000MPW Product Type SmartCard Reader
Identification Method Proximity Operating Range 13.23"
Wiegand Yes
Color Black Depth 12-17" Height 13"-11" Weight 65-04oz Width 13-11"
Input Voltage 12V, 24V DC
Mount Type Surface Mount
Compatibility Card Compatibility:
- iCLASS
- iCLASS SE
- MIFARE classic serial number
- MIFARE DESFire EV1 serial number
- (32 bit standard, 56 bit optional)
Package Contents 1 Installation guide, 1 Mounting material, 1 Reader body with board
