CDVI PBO400RN40 Magnetic Lock, Magnetic Door Bar, 880 lb
PBO400RN40 | CV-PBO400RN4
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Pull handles are becoming increasingly popular with sites that require strong holding forces or more aesthetic solutions. The entire range from CDVI is ideal for locations where a stronger lock is essential; such as schools, halls of residence and other public buildings.

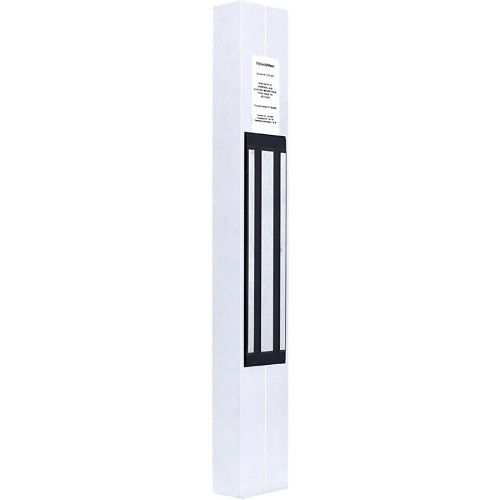

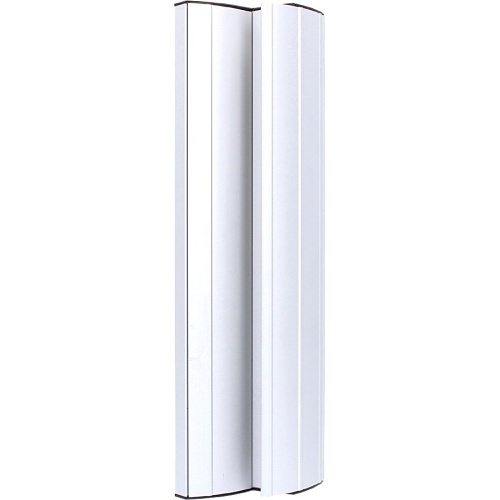

The PBO400RN40 is a 400mm handle incorporating 1x400kg monitored magnets. It can be fitted to new or existing doors and can be used externally. It offers a greater holding force, increasing the security and strentgh of the locking solution.
Main Features
- 400mm handle with 400kg monitored magnets
- Ideal for schools, halls of residence, and public buildings
- Suitable for new or existing doors
- Can be used externally
- Increases security and strength of locking solution
General Information
Name: CDVI PBO400RN40 Magnetic Lock, Magnetic Door Bar, 880 lb
Category: CDVI, Access Control, Locking Devices, Magnetic Locks
UPC Code: 3662211005358
Country of Origin: France. Country of origin is subject to change.
Specifications
ADI Part Number CV-PBO400RN4 Brand Name CDVI Manufacturer CDVI Group Manufacturer Part Number PBO400RN40 Product Model PBO400RN40 Product Name Architectural handle, 1x400kg monitored magnet, 400mm Product Type Magnetic Lock
Application/Usage Door, Glass Door, Metal Door, Public Transit Building, Residential, Wooden Door
Color Silver Depth 2.6" Height 15.7" Weight 6.94lb Width 5"
Input Current 550mA Input Voltage 24V DC
Holding Force 881 lb Mount Type Surface Mount
Features Monitored
