Camden CM-9800/3 Surface Mount LED Illuminated Push / Open Switch
CM-9800/3|CM-98003
Camden CM-9800/3 Surface Mount LED Illuminated Push / Open Switch
CM-9800/3|CM-98003
Camden Door Controls
Camden CM-9800/3 Surface Mount LED Illuminated Push / Open Switch
CM-9800/3 | CM-98003
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

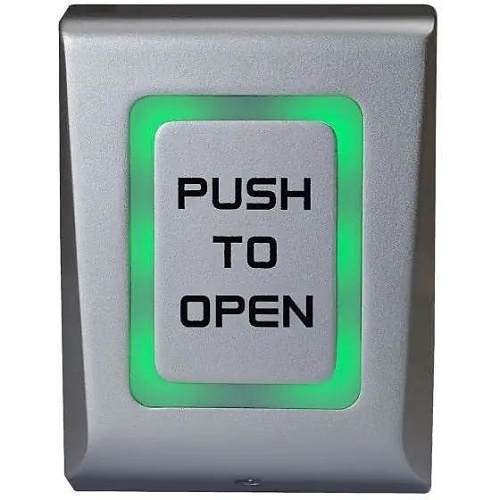

The CM-9800-3 from Camden Door Controls is a Surface Mount LED Illuminated Push/Open Switch. CM-9800 Series surface mount capacitive touch switches, with LED illumination, are vandal and weather resistant with IP 66 rating. The units feature a cast metal design and an adjustable 0 to 60 second relay timer. The CM-9800 has an external input, so that the switch illumination may be activated by either the switch status or the door (locked) status. The large surface area of the capacitive switch is easy to activate, with only a light touch, and the large LED light illumination enables the switch to be highly visible in low light conditions.
General Information
Name: Camden CM-9800/3 Surface Mount LED Illuminated Push / Open Switch
Category: Camden Door Controls, Access Control, Egress Devices, Request to Exit Devices
UPC Code: 670454203021
Country of Origin: Canada. Country of origin is subject to change.
Specifications
ADI Part Number CM-98003 Brand Name Camden Door Controls Manufacturer Part Number CM-9800/3 Product Name Camden Door Controls CM-9800-3 Surface Mount LED Illuminated Push/Open Swit Channelannel Product Type Push Button
Maximum Operating Temperature 122°F Minimum Operating Temperature -4°F
Application/Usage CM-9800 series illuminated capacitive touch switches are designed for use where high visibility and vandal resistance is required. Color Green, Orange, Red Depth 0.81" Durability Vandal Resistant, Weather Resistant Height 4.5" Width 3.37"
Input Voltage 12-24V DC
Environmental Certification RoHS Environmentally Friendly Yes
