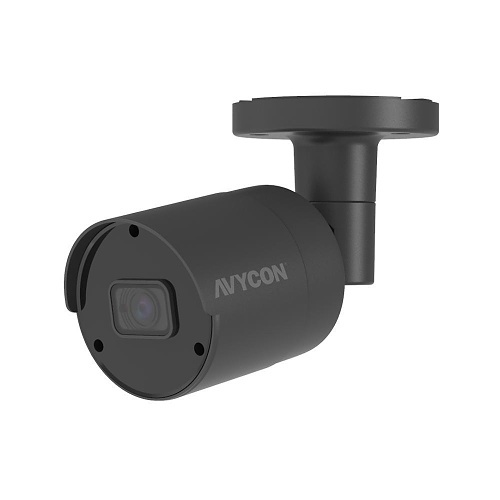

AVYCON AVC-TB51F28-G Diversity Series 5MP HD-TVI Bullet Camera, 2.8mm Fixed Lens
AVC-TB51F28-G|BX-CTB51F28G
AVYCON AVC-TB51F28-G Diversity Series 5MP HD-TVI Bullet Camera, 2.8mm Fixed Lens
AVC-TB51F28-G|BX-CTB51F28G
AVYCON
AVYCON AVC-TB51F28-G Diversity Series 5MP HD-TVI Bullet Camera, 2.8mm Fixed Lens
AVC-TB51F28-G | BX-CTB51F28G
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Our Second Generation HD-TVI Series continues providing the quality expected from the AVYCON brand. This 5MP camera includes an upgraded Smart IR LED array, new DIP switch design for easily changing video formats (HD-TVI, CVI, AHD and Analog), and a redesigned front face to help with a more accurate night view. With the newest generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. Also standard with this series is Digital NR, AGC, DWDR, and BLC capabilities along with IP67 outdoor rating.
Main Features
- 5MP (2592x1944)
- HD-TVI/CVI/AHD/CVBS (Analog)
- True Day and Night ICR
- Fixed 2.8mm Lens
- Easy-to-Use DIP Switch to Change Formats
- 2D DNR, WDR, BLC
- Smart IR Illumination Up to 66ft
- IP67 ingress protection
- DC12V
General Information
Name: AVYCON AVC-TB51F28-G Diversity Series 5MP HD-TVI Bullet Camera, 2.8mm Fixed Lens
Category: AVYCON, Video Surveillance, HDoC Cameras, Bullet Cameras
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number BX-CTB51F28G Brand Name AVYCON Manufacturer AVYCON Manufacturer Part Number AVC-TB51F28-G Product Line AVC Product Model AVC-TB51F28-G Product Name Avycon AVC-TB51F28-G 2592 X 1944 HD-TVI/CVI/AHD Analog Outdoor IR Bullet Camera, 2.8mm Lens Product Type Network Camera
Effective Camera Resolution 5MP Lens Mount Type M12 Lens Type Fixed Maximum Frame Rate 30fps Minimum Focal Length 2.8mm Night Vision Yes
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP67
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 131°F Minimum Operating Temperature -22°F
Longest Shutter Speed 1/50000 Second Minimum Illumination 0.05 lux Shortest Shutter Speed 1/15 Second
Lens Included Yes Maximum Focal Length 2.8 mm
Color Black, White Depth 7.32" Durability Dustproof, Waterproof, Weather Resistant Height 2.75"
Input Voltage 12V DC
Mount Type Ceiling Mount, Wall Mount
Features 2D DNR, WDR, BLC, 5MP (2592x1944), DC12V, Easy-to-Use DIP Switch to Change Formats, Fixed 2.8mm Lens, HD-TVI / CVI / AHD / CVBS (Analog), Smart IR Illumination up to 66ft, True Day and Night ICR Indoor/Outdoor Outdoor
