Product Overview

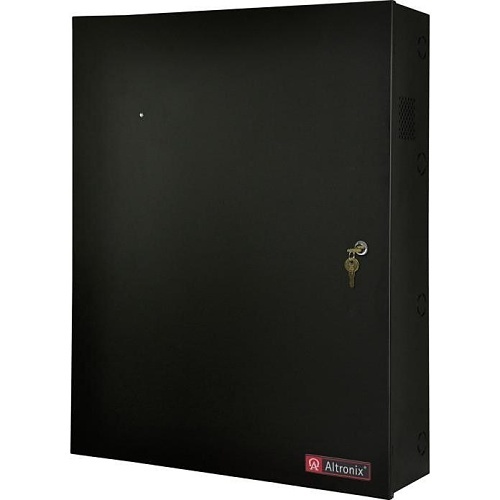

Introducing the Altronix T3M7724LXK1V, a comprehensive 24-door access and power integration kit designed for seamless operation. This innovative solution features Altronix power and sub-assemblies, complete with factory-installed wire management and pre-configured terminal blocks tailored for Mercury hardware. With its robust dual voltage outputs, it efficiently supports Mercury platform controllers and locking devices. The T3M7724LXK1V can accommodate one Intelligent Dual Reader Controller and up to eleven Dual Reader Interface Modules, making it ideal for demanding applications. Experience simplified field installations and reliable power control with the T3M7724LXK1V. Don't miss out—enhance your security system today!
Main Features
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- Accommodates the following Mercury controllers: 1 - LP1502 / LP4502 and 11 - MR52
- Convenient knockout configuration: One (1) single knockout - 2” Conduit, Two (2) double knockout - 1.25” Conduit and 1.5” Conduit, Thirteen (13) double knockouts - 3/4” Conduit and 1” Conduit
- Supervision: AC Fail, Low Battery and Battery Presence
General Information
Name: Altronix T3M7724LXK1V Access and Power Integration Kit T3MK77L24SV, PWX, KIT1
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-T3M77XKV Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number T3M7724LXK1V Product Line Trove Product Model T3M7724LXK1V Product Name 24-Door Altronix/Mercury Access and Power Integration Kit - Trove3M3 with (2) AL1024XB2V, (2) ACMS12, (2) PDS16, (2) VR6, RSB2 Product Series Trove Wired Kit Product Type Access/Power Integration Kit Sector Access Control
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4°F-158°F
Depth 7.06" Height 36.12" Weight 85.6 lb Width 30.12"
Input Voltage 220V AC
Mount Type Wall Mount
Limited Warranty Lifetime
Compatibility AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt Indoor/Outdoor Indoor Package Contents 1 x RSB2 - Dual Power ON/OFF Rocker Switches with Mounting Bracket, 1 x TM3 - Trove3 Backplane for Altronix & Mercury, 1 x TMV2 - Altronix/Mercury/HID VertX®/Aero® door backplane for Trove2 and Trove3, 1 x Trove3 - Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane, 2 x ACMS12 - Dual Input Access Power Controller, 12 Fuse Protected Outputs , Board, 2 x AL1024XB2V - Power Supply Charger, Single Fused Output, 24VDC @ 10A, 220VAC, Board, 2 x PDS16 - Dual Input Power Distribution Module, 16 Fused Outputs, 2 x VR6 - Voltage Regulator. 24VDC input into 5VDC or 12VDC output
