Altronix MAXIMAL77DV 24VDC 20A, 16 PTC Output, 220V Power Supply for Security Systems
MAXIMAL77DV | AX-MAXIMALD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix MAXIMAL77DV, a powerful solution for your access control needs. This unit efficiently converts a 220VAC input into sixteen independently controlled 24VDC outputs, each protected by PTC. Designed for versatility, it supports various access control devices such as mag locks and electric strikes, operating seamlessly in both fail-safe and fail-secure modes. The FACP interface allows for emergency egress and alarm monitoring, ensuring safety and reliability. With its robust features, the MAXIMAL77DV is perfect for enhancing your security systems. Don't miss out on this essential addition to your setup—order yours today!
Main Features
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
- Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input, b) Polarity reversal input from FACP signaling circuit
- Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC)
General Information
Name: Altronix MAXIMAL77DV 24VDC 20A, 16 PTC Output, 220V Power Supply for Security Systems
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-MAXIMALD Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXIMAL77DV Product Line MAXIMAL Product Model MAXIMAL77DV Product Name Access Power Controller w/ Power Supply/Chargers, 16 PTC Class 2 Relay Outputs, Dual 24VDC P/S @ 9.7A each, 220VAC, BC800 Enclosure Product Series MAXIMAL Product Type Access Power Controller Power Supplies Sector Access Control
Output Voltage 24V DC
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4°F-158°F
Depth 6.25" Height 26" Weight 43.3 lb Width 19"
Input Voltage 220V AC
Mount Type Wall Mount
Limited Warranty Lifetime

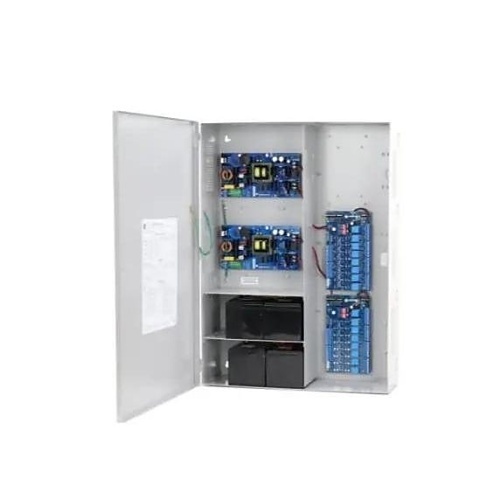

Indoor/Outdoor Indoor Package Contents 1 x BC800 Enclosure, 26"H x 19"W x 6.25"D, Grey, 19 Gauge, Indoor, 2 x ACM8CB Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board, 2 x AL1024XB2V Power Supply Charger, Single Fused Output, 24VDC @ 10A, 220VAC, Board
