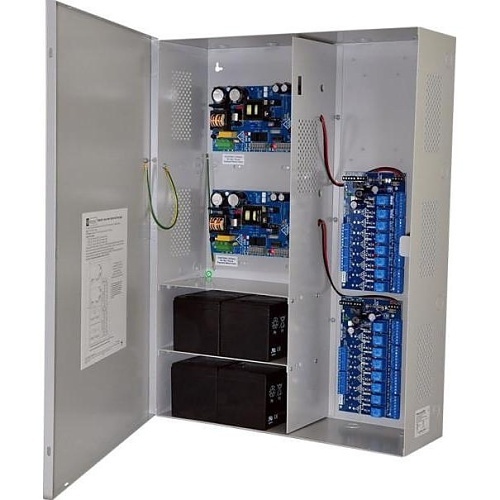

Altronix MAXIMAL33FDV Access Power Controller with Power Supply / Chargers, 16 PTC Class 2 Relay Outputs, Dual 12/24VDC P/S at 6A Each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
MAXIMAL33FDV|AX-MAXIM3DV
Altronix MAXIMAL33FDV Access Power Controller with Power Supply / Chargers, 16 PTC Class 2 Relay Outputs, Dual 12/24VDC P/S at 6A Each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
MAXIMAL33FDV|AX-MAXIM3DV
Altronix
Altronix MAXIMAL33FDV Access Power Controller with Power Supply / Chargers, 16 PTC Class 2 Relay Outputs, Dual 12/24VDC P/S at 6A Each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
MAXIMAL33FDV | AX-MAXIM3DV
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix MAXIMAL33FDV Access Power Controller, designed to efficiently manage and distribute power to your access control systems and accessories. This robust unit transforms a 220V AC input into sixteen independently controlled 12V DC or 24V DC outputs, all protected by PTC. It seamlessly integrates with various access control devices, including mag locks and electric strikes, and supports both fail-safe and fail-secure modes. With features like emergency egress and alarm monitoring, this controller is essential for any security setup. Upgrade your access control system today with the Altronix MAXIMAL33FDV and experience reliable power management!
Main Features
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
- Normally open (NO) or normally closed (NC) dry contact input
- Polarity reversal input from FACP signaling circuit
- Alarm output relay indicates that FACP input is triggered (form "C" contact rated at 1A 28V DC)
- AC fail supervision (form "C" contacts)
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours
- Low battery and battery presence supervision (form "C" contact)
- Capacity: 12AH/12V DC (4 within enclosure); 40AH/65AH (requires separate enclosure)
- Type Sealed lead acid or gel type
- Failover: Upon AC loss, instantaneous
General Information
Name: Altronix MAXIMAL33FDV Access Power Controller with Power Supply / Chargers, 16 PTC Class 2 Relay Outputs, Dual 12/24VDC P/S at 6A Each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-MAXIM3DV Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXIMAL33FDV Product Line MAXIMAL Product Model MAXIMAL33FDV Product Name Access Power Controller With Power Supply/Chargers, 16 PTC Class 2 Relay Outputs, Dual 12/24VDC P/S at 6A each, FAI, LinQ2 Ready, 220VAC, BC800 Enclosure Product Series MAXIMAL Product Type Access Power Controller Sector Access Control
Output Voltage 12V DC
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4°F-158°F
Depth 6.25" Height 26" Weight 33.3 lb Width 19"
Input Voltage 220V AC
Mount Type Wall Mount
Limited Warranty Lifetime
Environmental Certification RoHS Features AC fail supervision (form "C" contacts), Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC), Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure), Failover: Upon AC loss, instantaneous, Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs, Low battery and battery presence supervision (form "C" contact), Normally open (NO) or normally closed (NC) dry contact input, Notification trigger is selectable for 30 seconds (factory set) or 2 hours, Polarity reversal input from FACP signaling circuit, Type: Sealed lead acid or gel type Indoor/Outdoor Indoor
