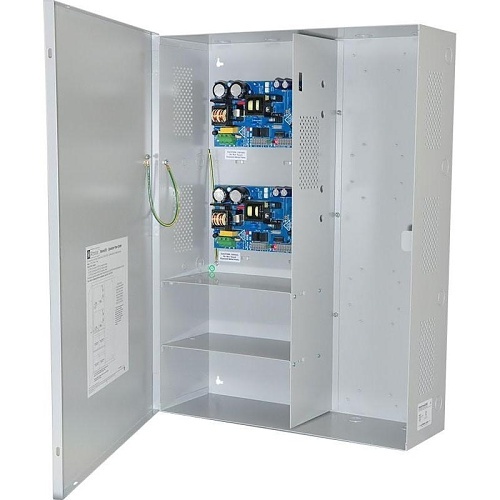

Altronix MAXIMAL33FE Power Supply Charger, Expandable, Dual 12/24V DC outputs at 6A each, 115V AC, FAI, LinQ2 Ready, BC800 Enclosure
MAXIMAL33FE|AX-MAX33FE
Altronix MAXIMAL33FE Power Supply Charger, Expandable, Dual 12/24V DC outputs at 6A each, 115V AC, FAI, LinQ2 Ready, BC800 Enclosure
MAXIMAL33FE|AX-MAX33FE
Altronix
Altronix MAXIMAL33FE Power Supply Charger, Expandable, Dual 12/24V DC outputs at 6A each, 115V AC, FAI, LinQ2 Ready, BC800 Enclosure
MAXIMAL33FE | AX-MAX33FE
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix MAXIMAL33FE Power Supply Charger, a versatile and expandable solution designed for system designers and installers. This innovative power system offers the flexibility of 12V DC, 24V DC, or both simultaneously, with dual outputs of 6A each. It features essential monitoring capabilities for AC failure, low battery, and battery presence, ensuring reliable performance. The robust enclosure accommodates up to four 12V DC/12AH batteries, making it an ideal choice for various applications. Elevate your power management with the MAXIMAL33FE and experience unmatched reliability. Don't miss out—order yours today!
Main Features
- Expandable dual 12/24V DC outputs at 6A each
- 115V AC input with FAI and LinQ2 Ready
- Includes AC fail, low battery, and battery presence monitoring
- Supports up to four 12V DC/12AH batteries
- UL Listed interconnecting equipment required
- Supervised fire alarm disconnect with 10K EOL resistor
- AC fail, battery fail, and presence supervision
- Over Voltage Protection and low power shutdown
- Visual indicators for AC and DC status
- Operating temperature from 0°C to 49°C (32°F to 120°F)
General Information
Name: Altronix MAXIMAL33FE Power Supply Charger, Expandable, Dual 12/24V DC outputs at 6A each, 115V AC, FAI, LinQ2 Ready, BC800 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239952649
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-MAX33FE Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXIMAL33FE Product Line MAXIMAL Product Model MAXIMAL33FE Product Name Power Supply/Charger, Expandable, Dual 12/24VDC outputs @ 6A each, 115VAC, FAI, LinQ2 Ready, BC800 Enclosure Product Series MAXIMAL Product Type Power Supply/Charger Sector Access Control
Output Voltage 12V DC, 24V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Depth 6.25" Height 26" Weight 32lb Width 19"
Input Voltage 120V AC Output Current 6A
Mount Type Wall Mount
Environmental Certification cUL, RoHS, UL Environmentally Friendly Yes Indoor/Outdoor Indoor
