Altronix HUBWAY8CD UTP Passive Transceiver Hub, 8-Channel, Video up to 750', Integrated 24/28VAC Power Supply, 115/220VAC, 1U
HUBWAY8CD|AX-HUB8CD
Altronix HUBWAY8CD UTP Passive Transceiver Hub, 8-Channel, Video up to 750', Integrated 24/28VAC Power Supply, 115/220VAC, 1U
HUBWAY8CD|AX-HUB8CD
Altronix
Altronix HUBWAY8CD UTP Passive Transceiver Hub, 8-Channel, Video up to 750', Integrated 24/28VAC Power Supply, 115/220VAC, 1U
HUBWAY8CD | AX-HUB8CD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

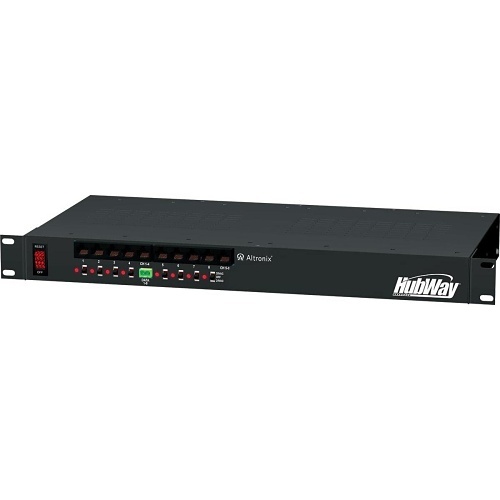

Introducing the Altronix HubWay Video Console/Extender, a cutting-edge solution for your video transmission needs. This passive UTP transceiver hub allows you to transmit video, data, and power seamlessly over a single CAT-5 or higher cable, supporting up to 8 camera channels in a compact 1U EIA 19" rack mount chassis. With a remarkable video transmission range of up to 750 feet per channel, it is compatible with both AC and DC cameras. The unit features selectable 24VAC or 28VAC outputs with surge protection, ensuring reliable performance. Enhance your setup with the optional HubSat4D module for additional camera support. Upgrade your surveillance system today with the Altronix HubWay!
Main Features
- Illuminated master power disconnect circuit breaker with manual reset
- IEC 320 - 3-wire grounded line cord (detachable)
- Unit can be rack, wall or shelf mounted
- 1U EIA 19" rack mount chassis
General Information
Name: Altronix HUBWAY8CD UTP Passive Transceiver Hub, 8-Channel, Video up to 750', Integrated 24/28VAC Power Supply, 115/220VAC, 1U
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239944897
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-HUB8CD Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number HUBWAY8CD Product Line HubWay Product Model HUBWAY8CD Product Name HubWay Video Console/Extender Product Type Video Extender Transmitter/Receiver Weight 11lb
Connectivity Technology Wired Output Voltage 24V AC, 28V AC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F
Depth 8.5" Form Factor Rack Mount, Wall Mount Height 1.62" Width 19.12"
Input Voltage 120V AC
Mount Type Rack Mount
Limited Warranty Lifetime
Environmental Certification RoHS Environmentally Friendly Yes Package Contents - HubWay Video Console/Extender
- 2 x Mounting Brackets
- 6 x Flat Head Screws for Mounting Brackets
- 4 x Rubber Pads
- Grounded Line Cord
