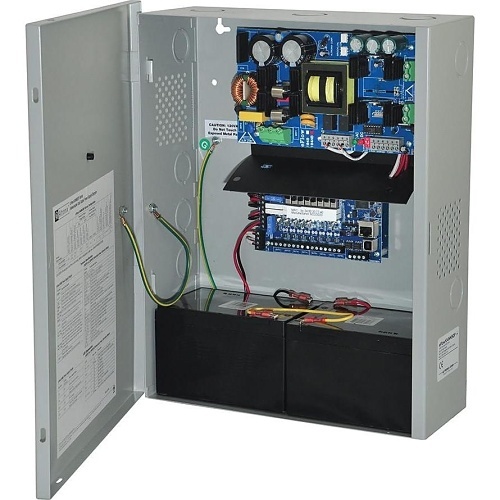

Altronix EFLOW104NK8DQP Access Power Supply Charger Kit, Networkable Dual Output, PTC Outputs, 12/24VDC, 120VAC, BC400 Enclosure
EFLOW104NK8DQP|AX-E104N8DQP
Altronix EFLOW104NK8DQP Access Power Supply Charger Kit, Networkable Dual Output, PTC Outputs, 12/24VDC, 120VAC, BC400 Enclosure
EFLOW104NK8DQP|AX-E104N8DQP
Altronix
Altronix EFLOW104NK8DQP Access Power Supply Charger Kit, Networkable Dual Output, PTC Outputs, 12/24VDC, 120VAC, BC400 Enclosure
EFLOW104NK8DQP | AX-E104N8DQP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix EFLOW104NK8DQP Access Power Supply Charger Kit, a versatile solution for your power needs. This innovative sub-assembly kit transforms a 120VAC 60Hz input into eight individually selectable PTC protected outputs, delivering 12VDC or 5VDC up to 6A, and 24VDC up to 10A, with a total power capacity of 240W. Ideal for access control panels, door locks, and other ancillary devices, it features essential safeguards like fire alarm disconnect, over voltage protection, and low power disconnect to protect your standby batteries. Enhance your network with this power distribution module that allows for efficient monitoring and control. Don't miss out on this essential addition to your security system—order yours today!
Main Features
- Includes an unswitched auxiliary output
- Reports diagnostics via Email and Windows Dashboard Alert notifications
- Reducing system downtime and eliminating unnecessary service calls
General Information
Name: Altronix EFLOW104NK8DQP Access Power Supply Charger Kit, Networkable Dual Output, PTC Outputs, 12/24VDC, 120VAC, BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239962198
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-E104N8DQP Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number EFLOW104NK8DQP Product Line eFlow Product Model EFLOW104NK8DQP Product Name Networkable Dual Output Power Supply/Charger, 8 PTC protected Auxiliary Class 2 power-limited outputs, 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power), 120VAC, BC400 Enclosure Product Type Networkable Dual Output Power Supply/Charger Sector Access Control
Output Voltage 12V DC, 24V DC, 5V DC
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4°F-158°F
Depth 4.5" Form Factor Enclosure Height 15.5" Weight 9.4 lb Width 12"
Input Voltage 120V AC Output Power 240 W
Mount Type Wall Mount
Limited Warranty Lifetime
Compatibility Compatible Products:
- Access Control Panels
- Door Locks
- Ancillary Devices
Environmental Certification RoHS Environmentally Friendly Yes Features LED Indicator Indoor/Outdoor Indoor
