Product Overview

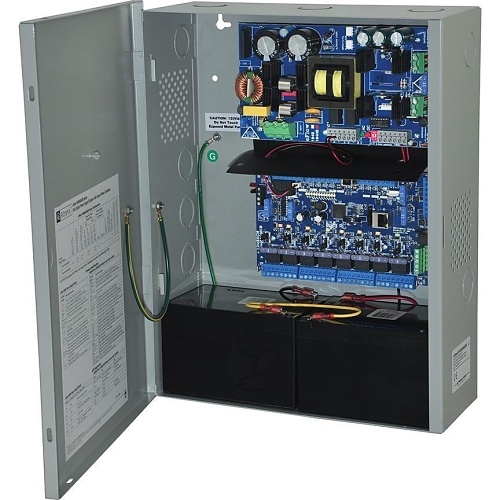

Introducing the Altronix EFLOW104NKA8QM Networkable Dual Output Power Supply Charger, designed to meet your power needs with efficiency and reliability. This innovative sub-assembly kit transforms a 120VAC 60Hz input into eight fuse-protected outputs, allowing you to select between 12VDC or 5VDC up to 6A, and 24VDC up to 10A, delivering a total power of 240W. Perfect for access control panels, door locks, and other ancillary devices, it features versatile activation options including dry trigger inputs and wet outputs from various systems. With an FACP Interface for emergency egress and alarm monitoring, this power supply is a must-have for any security setup. Don't miss out on enhancing your system's reliability—order yours today!
Main Features
- eFlow104NKA8QM will route power to a variety of access control hardware devices
- Outputs will operate in both Fail-Safe and/or Fail-Secure modes
- The spade connectors allow you to daisy chain power to multiple LINQ8ACM modules
- Built-in LINQTM Network Power Management facilitates monitoring, reporting and control of power / diagnostics
General Information
Name: Altronix EFLOW104NKA8QM Networkable Dual Output Power Supply Charger, Fuse Outputs, 12VDC 24VDC, 120VAC, BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239962730
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-E104KA8QM Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number EFLOW104NKA8QM Product Line eFlow Product Model EFLOW104NKA8QM Product Name Networkable Dual Output Power Supply/Charger, 8 fuse protected Auxiliary Class 2 power-limited outputs, 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power), 120VAC, BC400 Enclosure Product Type Networkable Dual Output Power Supply/Charger Sector Access Control
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4°F-158°F
Depth 4.5" Height 15.5" Weight 9.4 lb Width 12"
Input Voltage 120V AC
Mount Type Wall Mount
Environmental Certification RoHS Environmentally Friendly Yes Indoor/Outdoor Indoor
