Product Overview

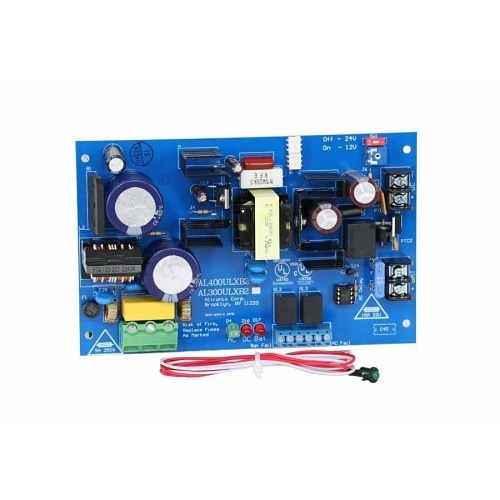

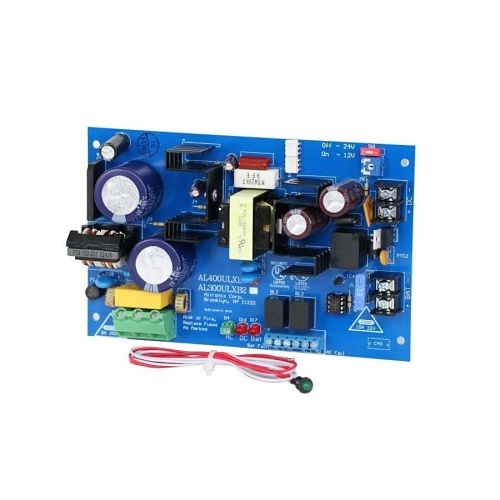

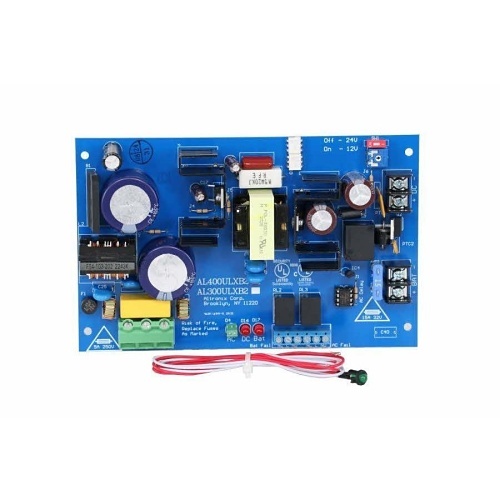

Introducing the Altronix AL400RLB power supply/charger, designed to efficiently convert 115VAC, 60 Hz input into a reliable 12VDC or 24VDC output. This Class 2 Rated device is equipped with essential features such as AC fail supervision, battery presence detection, and low battery monitoring, ensuring optimal performance and safety. The package includes an LED cable assembly and lens, making installation straightforward. Perfect for those seeking a dependable power solution, the Altronix AL400RLB is your go-to choice. Don't miss out on enhancing your setup—order yours today!
Main Features
- Converts 115VAC to 12VDC/24VDC output
- Class 2 Rated power-limited output
- AC fail supervision feature
- Battery presence and low battery supervision
- Includes LED cable assembly and lens
- Instantaneous failover upon AC loss
- LED indicators for input, output, and battery status
- Operating temperature from 0°C to 49°C (32°F to 120°F)
- Storage temperature range of -20°C to 70°C
- 85% relative humidity tolerance
General Information
Name: Altronix AL400RLB Power Supply / Charger with LED Cable Assembly, 12 or 24VDC at 4A, Board
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239975990
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-AL400LB Brand Name Altronix Manufacturer Part Number AL400RLB Product Line ULXB Product Model AL400RLB Product Name AL400RLB Power Supply/Charger with LED Cable Assembly Product Series RLB Product Type Power Supply/Charger Sector Access Control Weight 0.65lb
Output Voltage 12V DC, 24V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Height 1.44" Width 4.5"
Input Voltage 120V AC
Mount Type Board Mount
Limited Warranty Lifetime
Environmental Certification cUL, RoHS, UL Package Contents AL400ULXB2 with LED Cable Assembly
