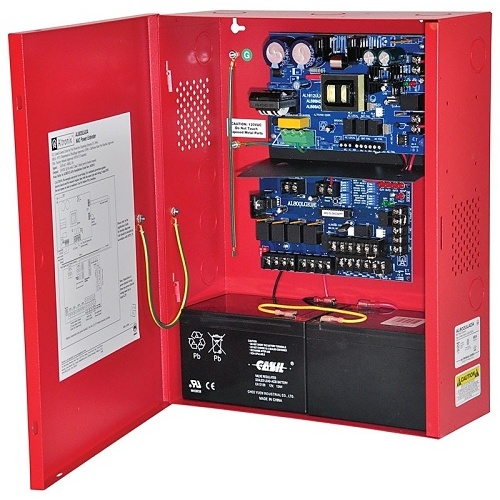

Altronix AL802ADA220 NAC Power Supply with BC400 Enclosure, 220V AC, Red
AL802ADA220|AX-802ADA220
Altronix AL802ADA220 NAC Power Supply with BC400 Enclosure, 220V AC, Red
AL802ADA220|AX-802ADA220
Altronix
Altronix AL802ADA220 NAC Power Supply with BC400 Enclosure, 220V AC, Red
AL802ADA220 | AX-802ADA220
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix AL802ADA220 NAC Power Supply, designed to enhance your fire alarm system with efficiency and reliability. This cost-effective voltage-regulated remote NAC Power Extender seamlessly connects to any 24V Fire Alarm Control Panel, making it ideal for Notification Appliance Circuit (NAC) expansion while adhering to ADA requirements. With a robust 8 A output at 24VDC, this power supply not only supports your system accessories but also ensures optimal performance. Upgrade your fire safety solutions today with the Altronix AL802ADA220 and experience peace of mind. Don't wait—secure yours now!
Main Features
- Cost-effective voltage regulated NAC Power Extender
- Compatible with 24V Fire Alarm Control Panels
- Supports ADA requirements for NAC expansion
- Provides auxiliary power for system accessories
- Includes BC400 Enclosure, 220V AC, Red
- AC fail supervision with form 'C' contact
- Visual indicators for input and output status
- 2-wire horn/strobe Sync mode for silencing horns
- Compatible with 12VDC or 24VDC fire panels
- Includes power supply, red enclosure, and cam lock
General Information
Name: Altronix AL802ADA220 NAC Power Supply with BC400 Enclosure, 220V AC, Red
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239951130
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AX-802ADA220 Brand Name Altronix Manufacturer Part Number AL802ADA220 Product Line ADA Product Model AL802ADA220 Product Name NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC at 8A, 220VAC, Red BC400 Enclosure Product Series ADA220 Product Type Power Supply Sector Access Control
Output Voltage 24V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Color Red Depth 4.5" Height 15.5" Weight 17lb Width 12.25"
Input Voltage 220V AC
Mount Type Wall Mount
Indoor/Outdoor Indoor
