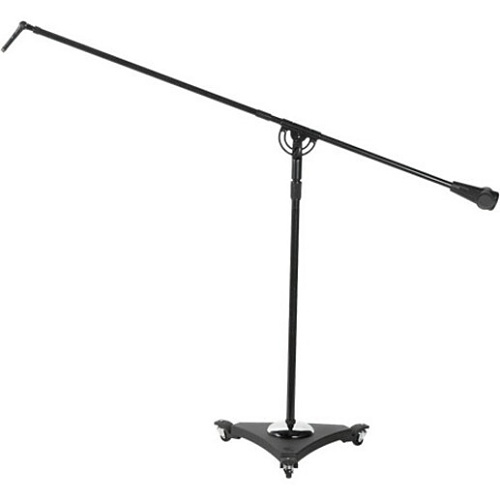

AtlasIED SB36WE Studio Boom Mic Stand with Air Suspension System, 49" to 73"

SB36WE | AT-SB36WE

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

SB-36W. These top-of-the-line boom stands feature a variable, piston-type air suspension system to ensure microphone protection. Model SB-36W is equipped with silent-motion, ball-bearing swivel casters of hard rubber for friction-free and vibration-absorbing mobility. Two-piece horizontal boom assembly is 7/8" dia. cold rolled steel with a heavy-duty, die-cast, gyromatic swivel and an adjustable 6-lb. counterweight for precise and secure orientation. Tubing terminates with an adjustable mic holder swivel with standard 5/8" - 27 thread to accept all microphones, holders, and adapters. Vertical tube assembly is manufactured of 11/8" and 7/8" chrome-plated cold rolled steel and includes the wearproof Atlas Sound grip-action clutch for easy adjustment and positive locking. Model SB-36W includes wheels for a height span of 49" to 73". Triangular cast metal base with edge-concentrated weight distribution offers extra stability and is finished in ebony epoxy with a chrome shell. SB-11WE. Economical studio boom is especially suited for small studio/broadcast applications and for stage miking of drums and percussion instruments. Unit features a 60" long, two-piece horizontal boom assembly constructed of steel tubing. Boom includes a Performer Series swivel clamp and an adjustable 2-lb. counterweight for effortless boom arm orientation. Tubing also incorporates a 90° angled end for optimum microphone positioning and terminates in the standard 5/8" - 27 thread to accept all microphones, holders, and adapters. Vertical tube assembly is 11/8" and 7/8" dia. cold rolled steel with an adjustable height span of 43" to 68". Tubing features the wearproof Atlas Sound grip-action clutch for positive locking control. Triangular die-cast base with edge-concentrated weight distribution offers extra stability and is equipped with three, hard rubber swivel casters for effortless and silent mobility. Entire assembly is finished in non-reflective ebony epoxy.

Main Features

  • Variable piston-type air suspension system
  • Silent-motion ball-bearing swivel casters
  • 7/8" dia. cold rolled steel horizontal boom
  • Adjustable 6-lb. counterweight for secure orientation
  • Standard 5/8" - 27 thread for all microphones
  • Wearproof grip-action clutch for easy adjustment
  • Height span of 49" to 73" with wheels
  • Triangular cast metal base for extra stability
  • Non-reflective ebony epoxy finish

General Information

Name: AtlasIED SB36WE Studio Boom Mic Stand with Air Suspension System, 49" to 73"
Category: AtlasIED, Pro AV, Commercial Audio, Pro Accessories & Mounts
UPC Code: 612079181117
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
