Product Overview

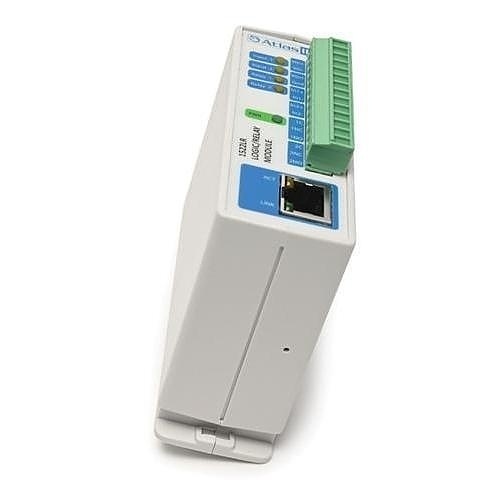

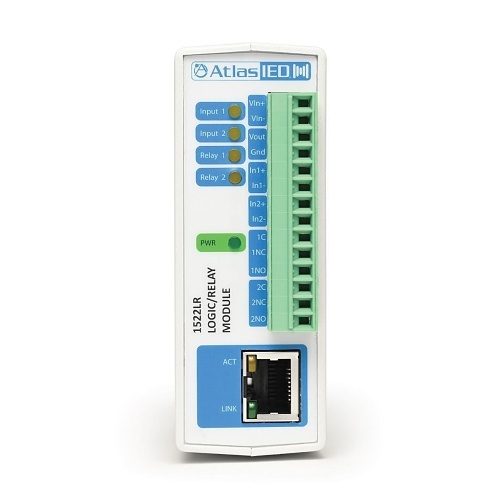

The IP-1522LR Logic / Relay Module is a cost-effective interface module that operates as an integral part of an IPX based InformaCast system. It is a web-enabled, programmable relay device for a wide variety of remote control and automation applications. It has two electro-mechanical relays and two optically-isolated inputs.
Main Features
- Two electro-mechanical relays
- Two optically-isolated inputs
- Utilizes IEEE 802.af Power over Ethernet
- InformaCast compatible via the M2M module
- Settings stored in non-volatile memory
- Rugged Din-rail mount enclosure
General Information
Name: AtlasIED IP-1522LR 2-Logic Input with 2-Relay Output IO Device
Category: AtlasIED, Batteries & Power Supplies, Circuit Breakers, Fuses & Relays, Relays
UPC Code: 612079703739
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number AT-IP1522LR Brand Name AtlasIED Manufacturer Part Number IP-1522LR Product Name IP-1522LR 2 Logic Input x 2 Relay Output IO Device Product Type Relay Sector Professional AV
Application/Usage Automation, Remote Control
Maximum Operating Temperature 150°F Minimum Operating Temperature -40°F
Depth 3.1" Form Factor Enclosure Height 3.88" Weight 0.34lb Width 1.41"
Maximum Input Current 3A Maximum Operating Voltage 28V AC|24V DC
Limited Warranty 36-Month
Compatibility M2M module
