SoundTube RS800I-BK SoundTube 8" Hanging Speaker with BroadBeam Tweeter, Black
RS800I-BK|9W-RS800IBK
SoundTube RS800I-BK SoundTube 8" Hanging Speaker with BroadBeam Tweeter, Black
RS800I-BK|9W-RS800IBK
SoundTube
SoundTube RS800I-BK SoundTube 8" Hanging Speaker with BroadBeam Tweeter, Black
RS800I-BK | 9W-RS800IBK
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

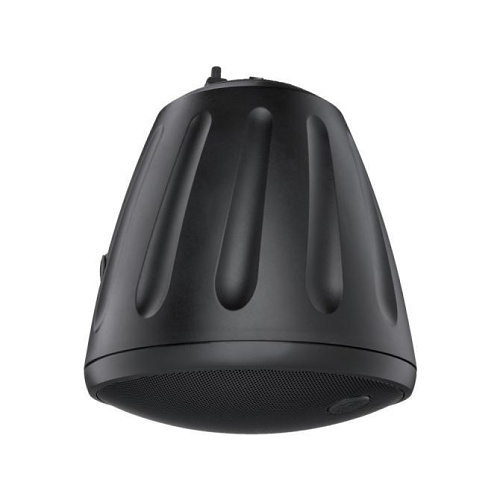

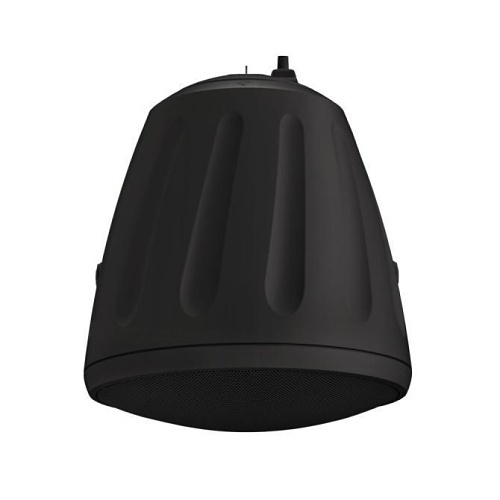

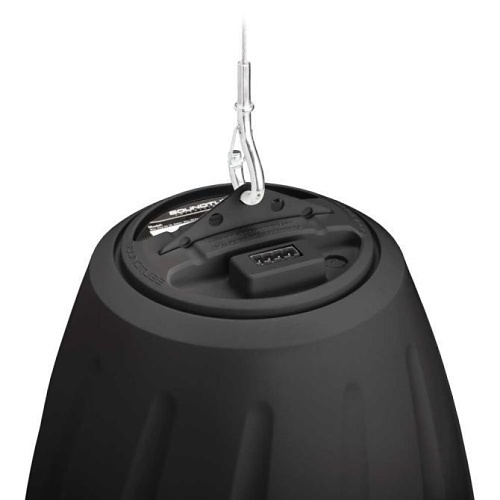

The RS800i includes an 8-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way, ported speaker with an open-ceiling enclosure design delivers extended low-end response (58 Hz) and 105° off-axis performance (2 to 10 kHz, indepen-dently verified). SoundTube's proprietary BroadBeam waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The patented ZeroReflection enclosure technology provides optimal sound reproduction and cabinet rigidity. The easy access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position simplifies ordering and inventory tracking. The RS800i speaker design incorporates a low-profile grille, a proprietary motor-board, driver protection circuitry and a six-position tap switch with a transformer bypass position. Hanging hardware with galvanized steel cables are included and features a SpeedClamp self-locking cable grip for fast, easy and secure installation. Euroblock connector and terminal weather boot are included.
General Information
Name: SoundTube RS800I-BK SoundTube 8" Hanging Speaker with BroadBeam Tweeter, Black
Category: SoundTube, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 644216202300
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 9W-RS800IBK Brand Name SoundTube Manufacturer Part Number RS800I-BK
Maximum Frequency Response 22 kHz Minimum Frequency Response 80 Hz
Color Black Height 17.23" Width 14.82"
Environmental Certification CE, RoHS, UL Environmentally Friendly Yes Package Contents Euroblock, Hanging Hardware, Safety cable, Terminal Weather Boot
