SoundTube CM52-BGM-II-WH 5.25" In-Ceiling Speaker with Seamless Magnetic White Grille
CM52-BGM-II-WH|9W-CM52BGMWH
SoundTube CM52-BGM-II-WH 5.25" In-Ceiling Speaker with Seamless Magnetic White Grille
CM52-BGM-II-WH|9W-CM52BGMWH
SoundTube
SoundTube CM52-BGM-II-WH 5.25" In-Ceiling Speaker with Seamless Magnetic White Grille
CM52-BGM-II-WH | 9W-CM52BGMWH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
One 5.25" (134 mm) polypropylene woofer with rubber surround and one 0.75" (19mm) silk dome tweeter. BroadBeam Ring technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100V and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability. Adaptable to material thicknesses ranging from 0.035" (0.9mm) to 1.6" (40.6mm). UL 1480 and 2043 listed. Included accessories. Color-coded (green) tile bridge, UL listed conduit clamp, paint shield.
Main Features
- One 5.25" (130mm) polypropylene woofer with rubber surround and one .75" (19mm) silk dome tweeter
- BroadBeam Ring technology for mid-range clarity and ultra wide off axis performance

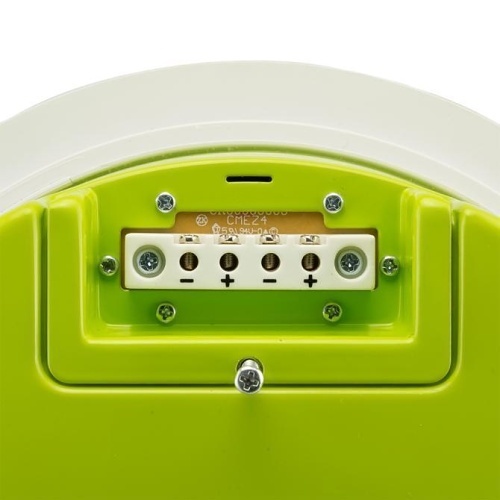

- Easy-access six-position tap switch for 25/70.7/100 V and transformer bypass settings allows for easy ordering, stocking and installation
- Tuned port on baffle for improved bass response down to 56 Hz (±10 dB)
- Reduced amplification costs and maximum efficiency of 83.5 dB sensitivity, 16ohms impedance

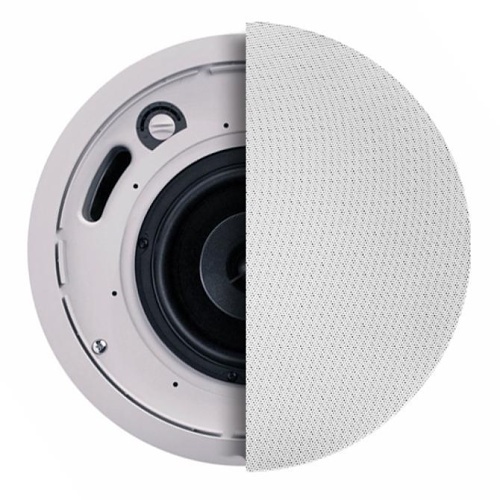

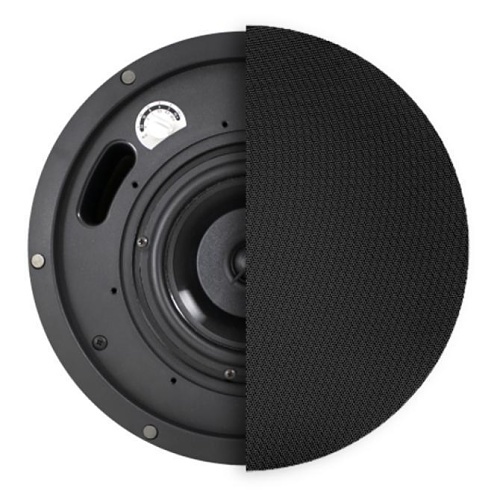

- Incorporates a steel plated and powder coated flangeless magnetic grille for lasting durability and seamless aesthetic (white grille included, but also available in black)
- Adaptable to material thicknesses ranging from 0.035" (0.9mm) to 1.6" (40.6mm)
- UL 1480 and 2043 approved
- High-quality black or white painted finish
- Included accessories - tile bridge, UL listed 0.5" conduit clamp
General Information
Name: SoundTube CM52-BGM-II-WH 5.25" In-Ceiling Speaker with Seamless Magnetic White Grille
Category: SoundTube, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 9W-CM52BGMWH Brand Name SoundTube Manufacturer Part Number CM52-BGM-II-WH
Maximum Frequency Response 22 kHz Minimum Frequency Response 56Hz
Color White
Environmental Certification CE, RoHS, UL Environmentally Friendly Yes Package Contents Conduit Clamp, Cover Plate, Grille, Paint Mask
