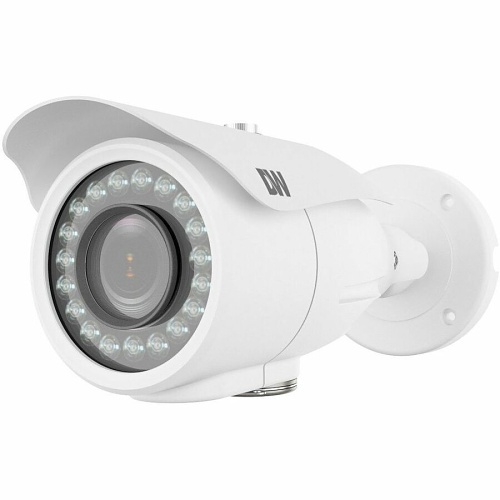

Digital Watchdog DWC-B6563WTIR650W Star-Light Plus 5MP UHDoC Bullet Camera, Varifocal Lens, 24V AC, White (Replaces DWC-B6563WTIR650)
DWC-B6563WTIR650W | 6K-B6563W65W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI signals. The 6-50mm long-range weather resistant bullet cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.
Main Features
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" Image sensor
- 5MP At 20 fps, 4MP at real-time 30 fps
- 6-50mm Varifocal p-iris lens
- True wide dynamic range (WDR)
- OSD Control via coaxial (UTC)
- 150' Smart IR with intelligent camera sync
- Smart DNR 3D digital noise reduction
- True day / night mechanical IR cut filter
General Information
Name: Digital Watchdog DWC-B6563WTIR650W Star-Light Plus 5MP UHDoC Bullet Camera, Varifocal Lens, 24V AC, White (Replaces DWC-B6563WTIR650)
Category: Digital Watchdog, Video Surveillance, HDoC Cameras, Bullet Cameras, ADI Pro Rewards
UPC Code: 812226037032
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number 6K-B6563W65W Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-B6563WTIR650W Product Line Star-Light Plus Product Model DWC-B6563WTIR650W Product Name Star-Light Plus 5MP UHDoC bullet camera with a long range vari-focal lens and IR Product Series Star-Light Plus Product Type Surveillance Camera Weight 1.76lb
American Wire Gauge 18AWG Connectivity Technology Wired Effective Camera Resolution 5MP Field of View Horizontal, Vertical Illumination Distance 150' Lens Type Varifocal Material Aluminum Die-cast Maximum Frame Rate 30fps Minimum Focal Length 6mm Motion Detection Yes Night Vision Yes Night Vision Type Infrared Optical Zoom 8.3x Output Voltage 24V AC Programmable Yes Video Formats H.264, MJPEG
Image Sensor Type CMOS Night Vision Distance 150 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66
Image Sensor Size 1/2.8" Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -4°F (-20°C) Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -4-122°F
Longest Shutter Speed 1/30 Second Minimum Illumination 0.0 lux (B/W)|0.10 lux (color) Shortest Shutter Speed 1/30000 Second
Focal Length 6-50 mm Focus Modes Auto Lens Included Yes Maximum Focal Length 50 mm
ADI Part Number Replaces 6K-B6563W650 Model Number Replaces DWC-B6563WTIR650
Color White Durability Dust Resistant, Waterproof, Weather Resistant Form Factor Bullet
Frequency 50 Hz|60 Hz Input Voltage 12V DC, 24V AC
Amperage 531mA
Analog Video Signal Format CVBS, HDCVI, HD-TVI Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Certifications CE, FCC, NDAA Country of Origin VN Environmental Certification RoHS Environmentally Friendly Yes Features 2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Noise Reduction, White Balance, Wide Dynamic Range
