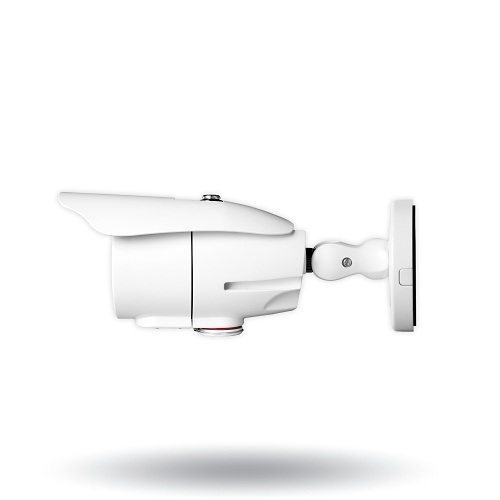

Digital Watchdog DWC-B6263WTIRW (WHITE) 2.1MP Varifocal
DWC-B6263WTIRW (WHITE)|6K-B6263WTIW
Digital Watchdog DWC-B6263WTIRW (WHITE) 2.1MP Varifocal
DWC-B6263WTIRW (WHITE)|6K-B6263WTIW
Digital Watchdog
Digital Watchdog DWC-B6263WTIRW (WHITE) 2.1MP Varifocal
DWC-B6263WTIRW (WHITE) | 6K-B6263WTIW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Star-Light Universal HD over COAX cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p and CVBS at 960H. The vandal weather-resistant bullet cameras are IP66 rated. Star-Light Universal HD over Coax cameras are engineered to work with our VMAX A1 Universal HD over Coax DVRs using your existing Coax infrastructure for a cost-effective, high-resolution surveillance solution.
Main Features
- Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT Super Low Light Technology
- 2.1MP, 1/3" Image Sensor at Real-time 30 fps
- 2.8 to 12 mm Varifocal P-Iris Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- 100' Smart IR with Intelligent Camera Sync
- Smart DNR 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog Extreme Weather Image Compensation
General Information
Name: Digital Watchdog DWC-B6263WTIRW (WHITE) 2.1MP Varifocal
Category: Digital Watchdog, Video Surveillance, HDoC Cameras, Bullet Cameras, ADI Pro Rewards
UPC Code: 812226037056
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number 6K-B6263WTIW Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DWC-B6263WTIRW (WHITE) Product Line Star-Light Plus Product Name DWC-B6263WTIRW Star-Light 2.1MP/1080p UHDoC bullet camera with a vari-focal lens and IR Product Type Camera
American Wire Gauge 18AWG Effective Camera Resolution 2MP Field of View Horizontal, Vertical Illumination Distance 100' Lens Type Varifocal Material Aluminum Die-cast Motion Detection Yes Night Vision Yes Output Voltage 24V AC Programmable Yes
Wide Dynamic Range Yes
Ingress Protection Rating IP66
Image Sensor Size 1/3" Maximum Illumination 0.03 lux Maximum Video Resolution 1920 x 1080
Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -4-122°F
Minimum Illumination 0.0 lux (B/W)|0.03 lux (color) Shortest Shutter Speed 1/30 to 1/30000 sec
Focal Length 2.8-12 mm Focus Modes Auto, Manual
Color White Durability Weather Resistant Form Factor Bullet Height 3.81" Weight 1.65 lb Width 8.83"
Frequency 50 Hz|60 Hz Input Voltage 12V DC, 24V AC
Mount Type Ceiling Mount, Wall Mount
Amperage 370mA
Limited Warranty 5-Year
Certifications CE, FCC, NDAA Features 100' Smart IR with Intelligent Camera Sync, 2.1MP 1/3" Image Sensor at Real-time 30fps, 2.8 to 12mm Varifocal P-Iris Lens, De-Fog Extreme Weather Image Compensation, OSD Control Via Coaxial (UTC), Smart DNR 3D Digital Noise Reduction, STAR-LIGHT Super Low Light Technology, True Day/Night Mechanical IR Cut Filter, True Wide Dynamic Range (WDR), Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
