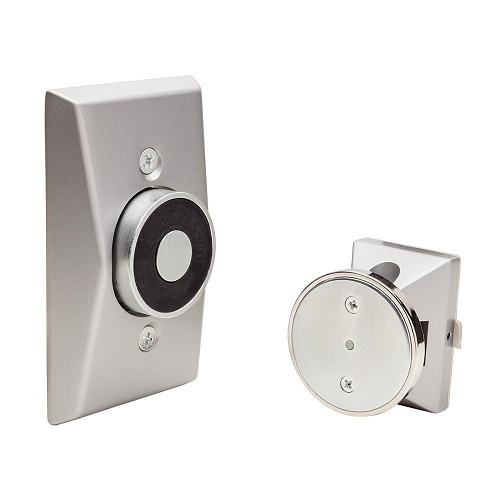

LCN SEM7850 689 12V/24V/120V Recessed Wall Mount Magnetic Door Holder, Standard Profile Armature
SEM7850 689 12V/24V/120V|4N-SEM785068
LCN SEM7850 689 12V/24V/120V Recessed Wall Mount Magnetic Door Holder, Standard Profile Armature
SEM7850 689 12V/24V/120V|4N-SEM785068
LCN
LCN SEM7850 689 12V/24V/120V Recessed Wall Mount Magnetic Door Holder, Standard Profile Armature
SEM7850 689 12V/24V/120V | 4N-SEM785068
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Sentronic 7800 Series magnet releases when the fire alarm panel enters an alarm condition and the electrical current is interrupted, allowing the door to perform manually until power returns. The tri-voltage design provides 35 pounds of holding force. The magnet is fail-safe and will hold the door until the current is interrupted. The SEM 7800 Series is protected by a 2-year warranty, meets ANSI/BHMA 156.15 and is UL Listed for metal smoke barrier or labeled fire doors. All magnets in the series feature die-cast housings and are available in aluminum and dark bronze finishes. The SEM 7820 is floor-mounted, the SEM 7830 is surface wall-mounted, the SEM 7840 is low-profile recessed wall-mounted and the SEM 7850 is standard-profile recessed wall-mounted. All magnets but the SEM 7820 are suitable for pocket door installation.
Main Features
- Die cast housing
- Choice of floor-mounted, recessed wall-mounted and surface-mounted wall magnets
- Heavy-duty design
- Tri-voltage design provides 35 pounds of holding force
- Magnets are fail-safe until the electrical current is interrupted
- Performs manually under alarm conditions until power returns
General Information
Name: LCN SEM7850 689 12V/24V/120V Recessed Wall Mount Magnetic Door Holder, Standard Profile Armature
Category: LCN, Access Control, Door Hardware, Electromagnetic Door Holders
UPC Code:
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number 4N-SEM785068 Brand Name LCN Manufacturer Part Number SEM7850 689 12V/24V/120V
