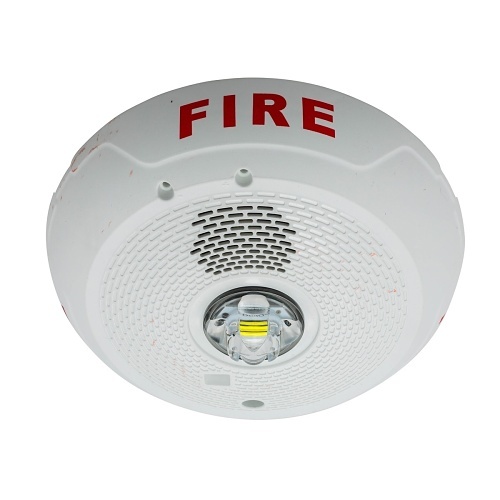

System Sensor SCWLED L-Series LED Strobe, Ceiling-Mount, Indoor, Marked FIRE, White
SCWLED|4H-SCWLED
System Sensor SCWLED L-Series LED Strobe, Ceiling-Mount, Indoor, Marked FIRE, White
SCWLED|4H-SCWLED
System Sensor
System Sensor SCWLED L-Series LED Strobe, Ceiling-Mount, Indoor, Marked FIRE, White
SCWLED | 4H-SCWLED
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The System Sensor L-Series LED strobes are rich with features that increase application versatility, simplify installation, and maximize profits with lower current draw and modern aesthetics. LED lighting technology offers significantly lower current draw compared to older Xenon bulbs across a full candela range. This improves design flexibility for notification appliance circuits (NACs) while also reducing power supply requirements allowing for simpler and lower cost installations. All devices feature plug-in designs with minimal intrusion into the backbox, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults. To further simplify installation and protect devices from construction damage, the L-Series utilizes a universal mounting plate for all models with an onboard shorting spring, so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12 or 24V operation, and a rotary switch for horn tones with two volume selections.
Main Features
- LED Technology provides lower current draw
- Digital Voltage Meter (DVM) diagnostic test points for Horn Strobes
- Common aesthetics across the L-Series platform
- Standard and compact sizes
- Tamper-resistant construction
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices
- Horn rated at 88+ dBA at 16V
- Rotary switches for candela, tone and volume selections
General Information
Name: System Sensor SCWLED L-Series LED Strobe, Ceiling-Mount, Indoor, Marked FIRE, White
Category: System Sensor, Fire, Fire Notification Devices, Strobes, ADI Pro Rewards
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number 4H-SCWLED Brand Name System Sensor Manufacturer Part Number SCWLED Product Line LED Product Series L Product Type LED Strobe
Color White Form Factor Ceiling Mount Lens Color Clear
Input Voltage 24V DC
Print/Message Fire
Indoor/Outdoor Indoor
