Product Overview

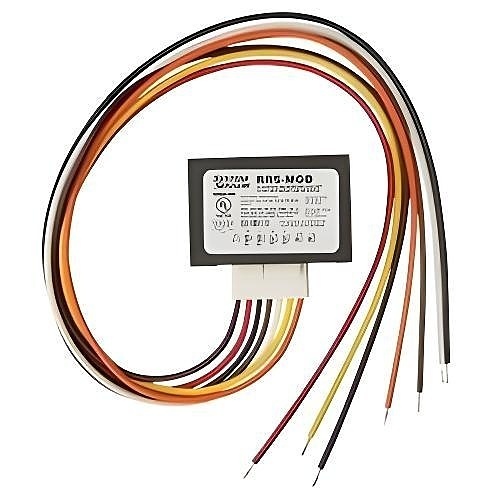

The System Sensor RRS-MOD is a versatile reversing relay and synchronization module made for 2- and 4-wire i3 series fire detectors with sounders. It triggers all i3 sounders on a loop when a single alarm activates, ensuring comprehensive alerting. The module synchronizes all sounders to provide a distinct and clear alarm signal, and it supports bell/alarm, alarm relay, or NAC outputs. Equipped with a field-selectable switch, it handles both coded and continuous alarm signals. Users can silence i3 detectors via panel or keypad, and its 12- and 24-volt compatibility adds convenience. Installation is simplified with a quick-connect harness and color-coded wiring. Enhance your fire detection system with this efficient, easy-to-use module today.
Main Features
- Is compatible with 2- and 4-wire i3 detectors equipped with a sounder
- Activates all i3 sounders on a loop when one alarms
- Synchronizes all i3 sounders on the loop for a clear alarm signal
- Is usable with bell/alarm, alarm relay, or NAC outputs
- Has a fld-selectable switch to accommodate both coded and continuous alarm signals
- Allows i3 detector silencing from the panel or keypad
- Operates on 12 and 24 volt systems
- Simplifies connections with quick-connect harness and color-coded wires
General Information
Name: System Sensor RRS-MOD Reversing Relay and Synchronization Module for and 4-Wire i3 Series Fire Detectors
Category: System Sensor, Batteries & Power Supplies, Circuit Breakers, Fuses & Relays, Relays, ADI Pro Rewards
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number 4H-RRSMOD Brand Name System Sensor Manufacturer Honeywell International, Inc Manufacturer Part Number RRS-MOD Product Model RRS-MOD Product Name Reversing Relay, Synchronization Module Product Type Relay Sector Fire
Maximum Operating Temperature 131°F Minimum Operating Temperature 32°F Relative Humidity 5-85%
Depth 1" Height 2.5" Width 2.5"
Maximum Input Current 20mA Maximum Operating Voltage 35V Minimum Operating Voltage 8.5V
Compatibility Compatible with 2- and 4-wire i3 detectors equipped with a sounder Environmental Certification UL Environmentally Friendly Yes
