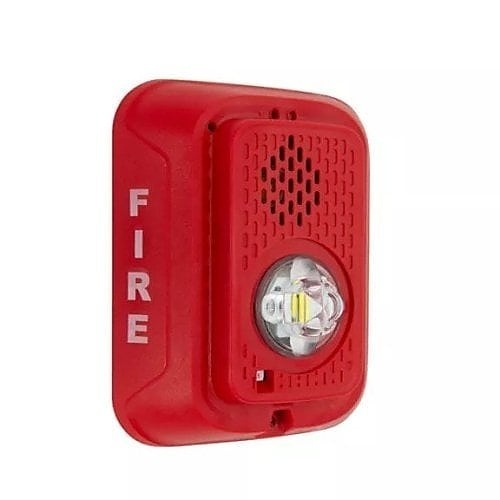

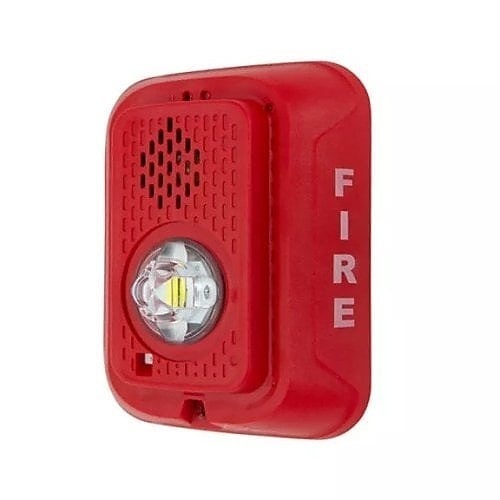

System Sensor P2RLED L-Series 2-Wire LED Horn Strobe, Wall-Mount, Indoor, Marked FIRE, Red

P2RLED|4H-P2RLED
Shop all System Sensor

System Sensor P2RLED L-Series 2-Wire LED Horn Strobe, Wall-Mount, Indoor, Marked FIRE, Red

P2RLED|4H-P2RLED

Sign In for Dealer Pricing

Become an ADI Customer
Image of 4H-P2RLED
System Sensor

System Sensor P2RLED L-Series 2-Wire LED Horn Strobe, Wall-Mount, Indoor, Marked FIRE, Red

P2RLED | 4H-P2RLED

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The System Sensor L-Series LED 2-wire horn strobes are rich with features that increase application versatility, simplify installation, and maximize profits with lower current draw and modern aesthetics. LED Lighting technology offers significantly lower current draw compared to older Xenon bulbs across a full candela range. This improves design flexibility for notification appliance circuits (NACs) while also reducing power supply requirements allowing for simpler and lower cost installations. All devices feature plug-in designs with minimal intrusion into the backbox, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.

Main Features

  • Digital Voltage Meter (DVM) diagnostic test points for Horn Strobes
  • Tamper-resistant construction
  • 24V Operation at 15 and 30 candela
  • Field-selectable candela settings on wall units of 15, 30, 75, 95, 110, 135, and 185
  • Horn rated at 88 dBA at 16V
  • Rotary switches for candela, tone and volume selections
  • Mounting plate provides plug-in design for easier installation and shorting springs to check wiring continuity
  • Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices
  • Synchronization through use of UL approved power supplies that support System Sensor Sync protocol or System Sensor MDL3 Sync Module

General Information

Name: System Sensor P2RLED L-Series 2-Wire LED Horn Strobe, Wall-Mount, Indoor, Marked FIRE, Red
Category: System Sensor, Fire, Fire Notification Appliances, Horn Strobes, ADI Pro Rewards
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
