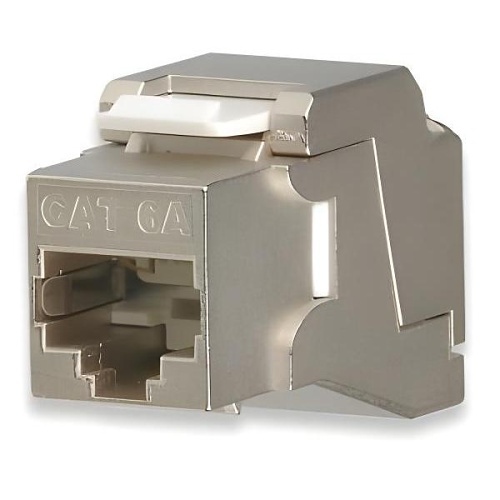

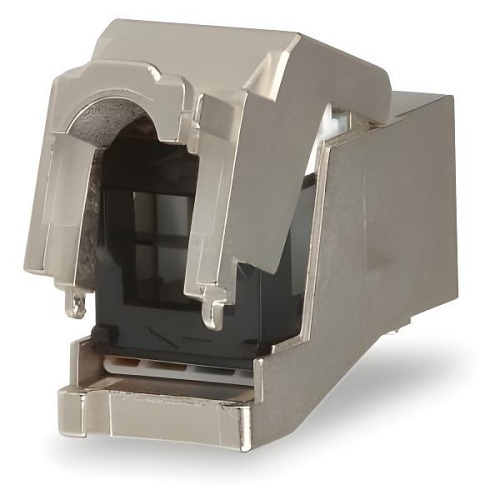

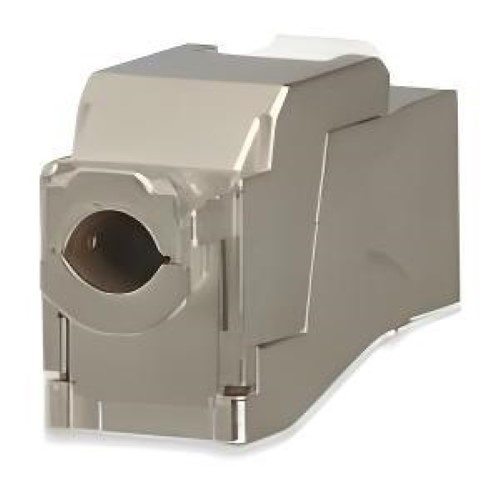

Signamax KJS458TL-C6AC CAT6a RJ45 Screened Toolless Keystone Jack, U/UTP Twisted Pair
KJS458TL-C6AC|47-KJS458TAC
Signamax KJS458TL-C6AC CAT6a RJ45 Screened Toolless Keystone Jack, U/UTP Twisted Pair
KJS458TL-C6AC|47-KJS458TAC
Signamax
Signamax KJS458TL-C6AC CAT6a RJ45 Screened Toolless Keystone Jack, U/UTP Twisted Pair
KJS458TL-C6AC | 47-KJS458TAC
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Signamax CAT6a Screened Toolless Keystone Jacks have been designed to meet the need for today’s high-bandwidth applications. These connectors are slim in profile for the highest density applications and terminate with the integrated termination cap of the connector.
Main Features
- Exceeds ANSI/TIA-568-C.2 component performance specifications
- Meets IEEE 802.3an 10 Gigabit Ethernet transmission requirements
- Overall solid-metal shielding design for 360-degree screen coverage
- Integrated toolless termination cap eliminates the need of any special tools
- Improved wire retention and ease of termination with rear 110 type contacts
- Easy-to-read T568A/B wiring scheme color-code label
- Compatible with Signamax screened snap-in patch panels and work area faceplates
General Information
Name: Signamax KJS458TL-C6AC CAT6a RJ45 Screened Toolless Keystone Jack, U/UTP Twisted Pair
Category: Signamax, Data Comm & Networking, Cable Connectors, Keystone Jacks
UPC Code: 763474167333
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 47-KJS458TAC Brand Name Signamax Manufacturer Part Number KJS458TL-C6AC
Diameter 0.35"
Environmental Certification FCC, UL Environmentally Friendly Yes
