Prysmian 7133787 6AGS10000 CAT6a Patch Cord CMR Unshielded Foiled Twisted Pair, White
7133787|2M-7133787
Prysmian 7133787 6AGS10000 CAT6a Patch Cord CMR Unshielded Foiled Twisted Pair, White
7133787|2M-7133787
 Cable.jpg)
Prysmian Group
Prysmian 7133787 6AGS10000 CAT6a Patch Cord CMR Unshielded Foiled Twisted Pair, White
7133787 | 2M-7133787
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

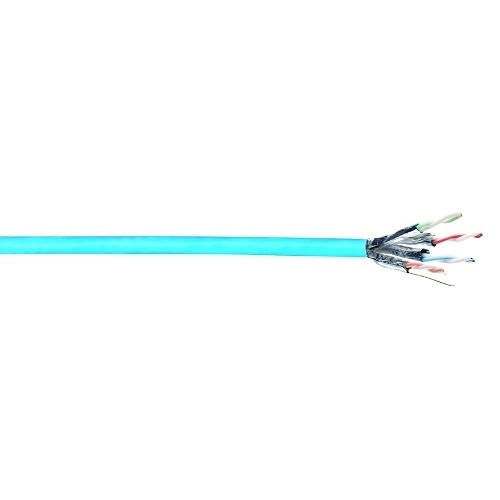

The Prysmian Group 6AGS10000 CMR WH U/FTP (STP) cable offers a shielded design where each pair is individually protected, ensuring maximum separation for enhanced electrical performance and effective EMI shielding. It features a positive PSACR beyond 500 MHz, delivering greater bandwidth capacity. Its durability is supported by higher temperature ratings, 90°C in plenum and 75°C in riser environments, making it reliable under demanding conditions. The cable also includes a TRU-Mark print legend with footage markings from 1000' to 0' for easy measurement. Upgrade your connectivity with this high-performance cable today!
Main Features
- Individually pair shielded design allows for maximum pair separation, increasing key electrical performance parameters and providing EMI protection
- Typical positive PSACR beyond 500 MHz for increased available bandwidth
- Improved cable temperature rating (90°C Plenum, 75°C Riser) for greater protection against increased operating temperatures
- TRU-Mark Print legend contains footage markings from 1000' to 0'
General Information
Name: Prysmian 7133787 6AGS10000 CAT6a Patch Cord CMR Unshielded Foiled Twisted Pair, White
Category: Prysmian Group, Wire & Cable, Network Cables, Category 6A Network Cables
UPC Code: 079407808618
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2M-7133787 Brand Name Prysmian Group Manufacturer Prysmian Group Manufacturer Part Number 7133787 Product Model 7133787 Product Name GenSPEED 10,000 Category 6A U/FTP (STP) Cable An Individually Shielded 10 Gig Option for Peace of Mind Product Type Connector Cable Weight 43lb
American Wire Gauge 23AWG, 24AWG Cable Rating Plenum|Riser Cable Type Riser Impedance 100 ohms Jacket Type CMR Material Copper Shielding Yes Solid or Stranded Solid|Stranded
Application/Usage ANSI/TIA 854: 1000 BASE-TX, Broadband and Baseband Analog Video, CDDI, Token Ring, ATM, Digital Video, IEEE 802.3: 1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE+ Cable Length 12000" Color White Package Type Spool
Frequency 1-600 MHz
Country of Origin US Environmental Certification CEC, EU RoHS, ISO Environmentally Friendly Yes
