APC GVSUPS20KGS Galaxy VS UPS, 20kW, 480V, External Batteries
GVSUPS20KGS | 2G-SUPS20KGS
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

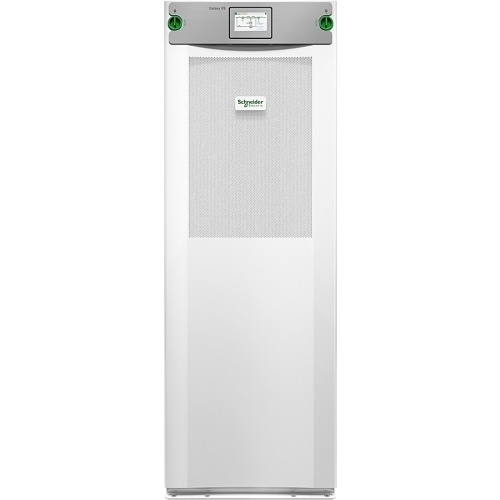

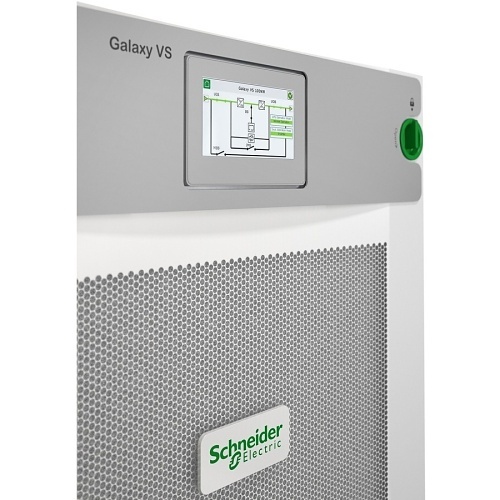

Introducing the APC by Schneider Electric Galaxy VS UPS, a robust 20KW uninterruptible power supply designed for external batteries. This tower-form UPS is perfect for businesses, data centers, and critical systems, ensuring your operations remain uninterrupted. With an input voltage range of 480V AC, 452V AC, and 408V AC, it delivers a reliable output of 480V AC. The Galaxy VS features hard wire receptacles, available in both 4-wire (3P + E) and 5-wire (3P + N + E) configurations, catering to diverse installation needs. Operating efficiently even in high temperatures up to 104°F (40°C), this UPS is also Energy Star certified, highlighting its environmentally friendly design. Invest in the Galaxy VS UPS to safeguard your critical systems and enhance your operational reliability. Don't wait—secure your power solution today!
General Information
Name: APC GVSUPS20KGS Galaxy VS UPS, 20kW, 480V, External Batteries
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-SUPS20KGS Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number GVSUPS20KGS Product Line Galaxy VS Product Name Galaxy VS 20kW Tower UPS Product Type Double Conversion Online UPS Sector Intrusion Weight 462.97lb
Output Voltage 480V AC Phase Three Phase Receptacle Detail 1 x Hard Wire 4-wire (3P + E), 1 x Hard Wire 5-wire (3P + N + E) Receptacle Type Hard Wire 4-wire (3P + E), Hard Wire 5-wire (3P + N + E)
Energy Star Yes
Maximum Operating Elevation 3281' Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 15240' Thermal Dissipation 641.18W
Application/Usage Business, Critical System, Data Center Depth 33.3" Form Factor Tower Height 58.5" Width 20.5"
Input Frequency 70Hz Input Voltage 408V AC, 452V AC, 480V AC Output Frequency 60Hz Plug/Connector Type Hard Wire 5-wire (3P + N + E) Waveform Type Sine Wave
Limited Warranty 1-Year
Country of Origin IN Environmentally Friendly Yes Package Contents - Galaxy VS 20kW Tower UPS
- Dust Filter
- Installation Guide
- Integrated Network Management
- Power Modules Ship Installed
- Start-up Service
- Top and Bottom Cable Entry
