Product Overview

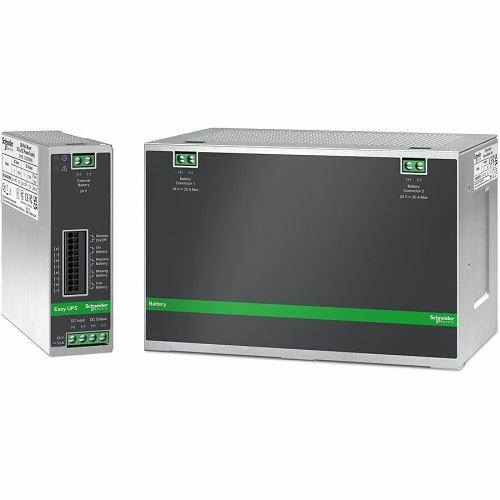

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 240W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.
Main Features
- Provides backup power to devices that require DC input while the incoming power is lost
- Prevent critical data loss by staying powered during a blackout with up to 240 W load capacity
- Terminal Block plug/connector type for convenient usage with added dependability
- DC Power receptacle type offers ease of operation with maximum efficiency
- 24 V DC input voltage for maximum feasibility and added productivity
- 24 V DC output voltage for better reliance and maximum usability
- DIN Rail form factor Is the strongest, most adaptable mounting system with maximum usability
General Information
Name: APC BVS240XDPDR Easy UPS Control Module, 24VDC-DC, DIN Rail, Industrial, 10A
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-S240XDPDR Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number BVS240XDPDR Packaged Quantity 1 Product Line Easy UPS Product Model BVS240XDPDR Product Name Easy UPS BVS240XDPDR 240W DIN Rail UPS Product Type DC UPS Weight 1.10lb
Output Voltage 24V DC Receptacle Type DC Power
Battery Characteristics External Battery System DC System Voltage 24
Maximum Operating Elevation 9842.52' Maximum Storage Elevation 9842.52' Sound Emission 40 dB
Color Gray Depth 4.69" Form Factor DIN Rail Height 5.08" Width 1.57"
Input Voltage 24V DC Plug/Connector Type Terminal Block
Additional Warranty Information 2 years repair or replace Limited Warranty 2-Year
Country of Origin CN Environmental Certification CE, TÜV, WEEE Environmentally Friendly Yes Package Contents User Manual
