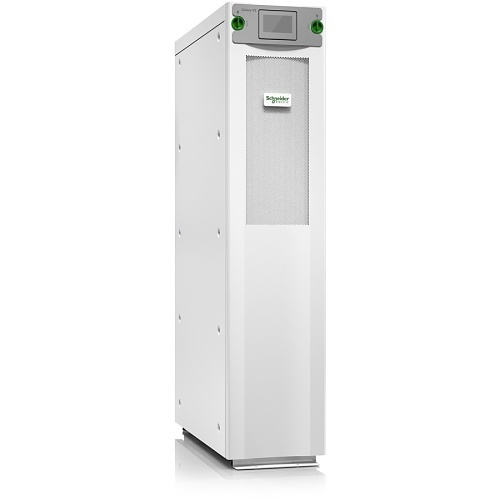

APC GVSUPS20KB2GS Galaxy VS UPS 20kW 480V, 1 Internal 7Ah Smart Modular Battery String, Expandable to 2, Start-Up 5x8
APC GVSUPS20KB2GS Galaxy VS UPS 20kW 480V, 1 Internal 7Ah Smart Modular Battery String, Expandable to 2, Start-Up 5x8
APC GVSUPS20KB2GS Galaxy VS UPS 20kW 480V, 1 Internal 7Ah Smart Modular Battery String, Expandable to 2, Start-Up 5x8
GVSUPS20KB2GS | 2G-PS20KB2GS
Please sign in to view pricing and availability and to add to cart.
Product Overview
Highly efficient 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V) 3-phase UPS for edge, small, and medium data centers and other business-critical applications.
Galaxy VS is a highly efficient, modular, easy-to-deploy 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V), three-phase uninterruptible power supply that delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership. Thanks to patented technologies, this UPS delivers up to 97% efficiency in normal operating mode and up to 99% in ECOnversion mode, equivalent to 66% higher energy savings. Galaxy VS is EcoStruxure Ready to give you peace of mind anytime, anywhere. Smart modular batteries integrated in the UPS cabinet optimize footprint and ensure critical loads have highly predictable runtimes. Start-up service is included to optimize your system's performance, quality, and safety. With its robust design and industry-leading performance, Galaxy VS is the ideal backbone for your critical infrastructure.
Main Features
- 20kW 480V 3-phase UPS
- Expandable modular battery
- High efficiency up to 99%
- Compact, high-density design
- N+1 redundancy for reliability
- EcoStruxure Ready
- Optimized footprint with smart batteries
- Includes start-up service
- Ideal for data centers and critical infrastructure
General Information
Specifications
ADI Part Number 2G-PS20KB2GS Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number GVSUPS20KB2GS Product Line Galaxy VS Product Name Galaxy VS 20kVA Tower UPS Product Type Double Conversion Online UPS Weight 540.13lb
Number of Batteries 1 Output Voltage 480V AC Phase Three Phase
Battery Capacity 7Ah Battery Characteristics Sealed Battery Chemistry Lead Acid DC System Voltage 480
Energy Star Yes
Maximum Operating Elevation 3229.33' Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 9842.52' Thermal Dissipation 652.08W
Network Management HTTP Remote Monitoring, Modbus Remote Monitoring, SNMP
Application/Usage Business, Commercial, Critical System, Data Center, Industrial Depth 33.4" Form Factor Tower Height 58.5" Width 13.1"
Input Frequency 70Hz Input Voltage 480V AC Output Frequency 60Hz Plug/Connector Type Hard Wire 4-wire (3PH + G) Waveform Type Sine Wave
Software Included Yes
Limited Warranty 1-Year
Environmental Certification China RoHS, FCC, Green Premium, REACH, RoHS, UL Environmentally Friendly Yes Package Contents - Galaxy VS 20kVA Tower UPS
- Dust Filter
- Installation Guide
- Integrated Network Management
- Power Modules
- Start-Up Service
- Top And Bottom Cable Entry
