APC GVMSB160KHS Galaxy VM 160 KVA UPS Single, 400V-400V
GVMSB160KHS|2G-MSB160KHS
APC GVMSB160KHS Galaxy VM 160 KVA UPS Single, 400V-400V
GVMSB160KHS|2G-MSB160KHS
APC by Schneider Electric
APC GVMSB160KHS Galaxy VM 160 KVA UPS Single, 400V-400V
GVMSB160KHS | 2G-MSB160KHS
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

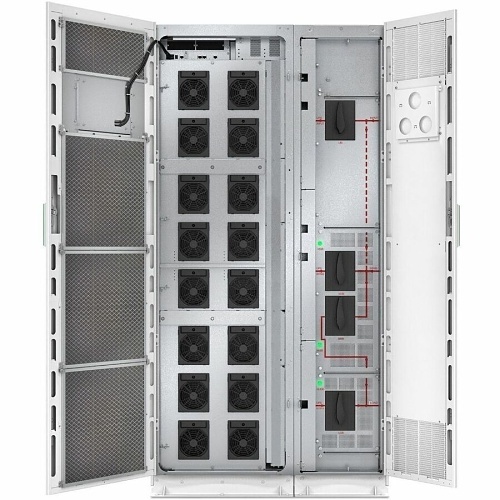

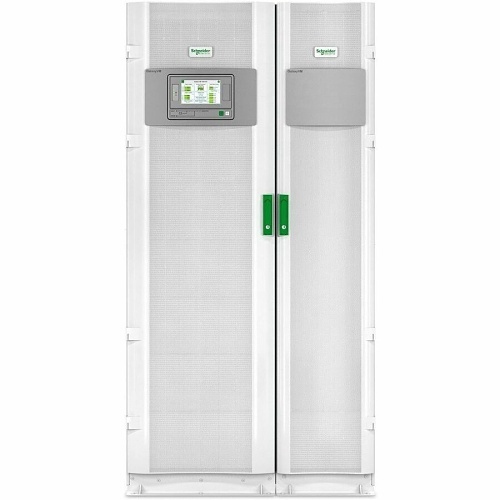

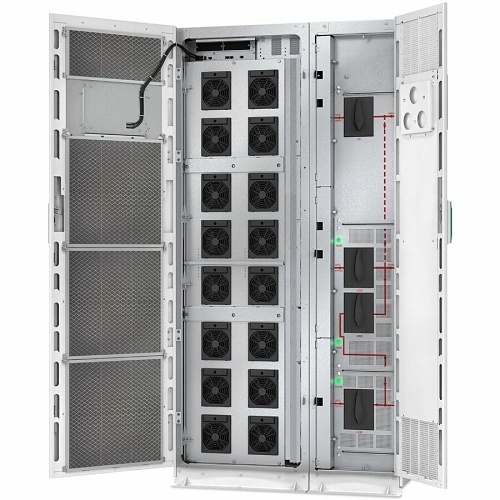

Highly compact, energy efficient 3-phase UPS for data center, facility and industrial applications. to be used with external battery cabinets.
Main Features
- 160 kVA power capacity
- Highly compact design
- Energy efficient 3-phase UPS
- Ideal for data centers
- Suitable for industrial use
- Compatible with external battery cabinets
General Information
Name: APC GVMSB160KHS Galaxy VM 160 KVA UPS Single, 400V-400V
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-MSB160KHS Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number GVMSB160KHS Packaged Quantity 1 Product Line Galaxy VM Product Name Galaxy VM 160kVA Tower UPS Product Type Double Conversion Online UPS Sector Intrusion Weight 1541.03lb
Output Voltage 380V AC, 400V AC, 415V AC Phase Three Phase Receptacle Detail 1 x Hard Wire 4-wire (3P + E), 1 x Hard Wire 5-wire (3P + N + E) Receptacle Type Hard Wire 4-wire (3P + E), Hard Wire 5-wire (3P + N + E)
DC System Voltage 480
Maximum Operating Elevation 3333' Maximum Operating Temperature 104°F (40°C) Maximum Storage Elevation 49212.01' Thermal Dissipation 5758.85W
EPO Port Yes
Network Management Modbus
Application/Usage Data Center, Industrial Color White Depth 33.6" Form Factor Tower Height 77.6" Package Type Pack Width 41.4"
Input Frequency 40Hz|70Hz Input Voltage 400V AC Output Frequency 50Hz|60Hz Plug/Connector Type Hard Wire 3-wire (3P + E) Waveform Type Sine Wave
Limited Warranty 1-Year
Environmental Certification EU RoHS, Green Premium, OSHPD, RoHS Environmentally Friendly Yes Package Contents - Galaxy VM 160kVA Tower UPS
- Built-in Modbus protocol adapter
- Dust Filter
- Installation Guide
- Integrated Network Management
- Seismic Compliance
- Top and Bottom Cable Entry
