Product Overview

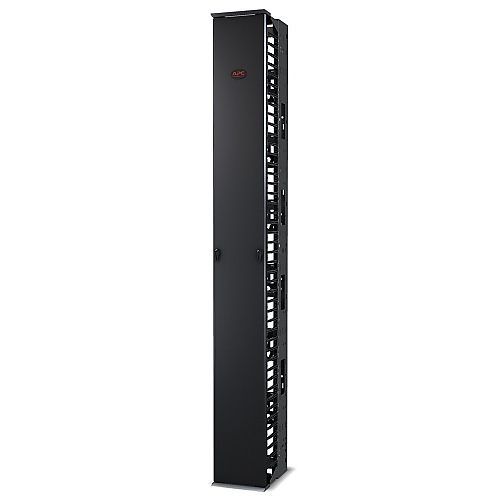

This 10" wide, high capacity vertical cable manager for 2 and 4 Post open frame racks features a single-sided cable channel with multiple internal cable tie-off locations and smooth plastic fingers at 1U increments for organized patching applications.
Main Features

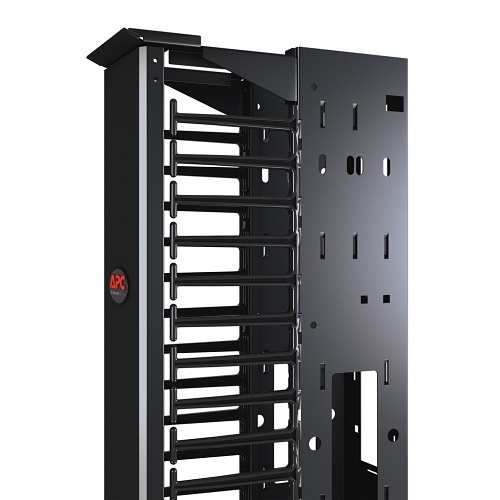

- Cable protection-Smooth plastic fingers provide proper bend radius
- High capacity cable finger design-Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel
- Toollessly mount vertical Rack PDUs-Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside

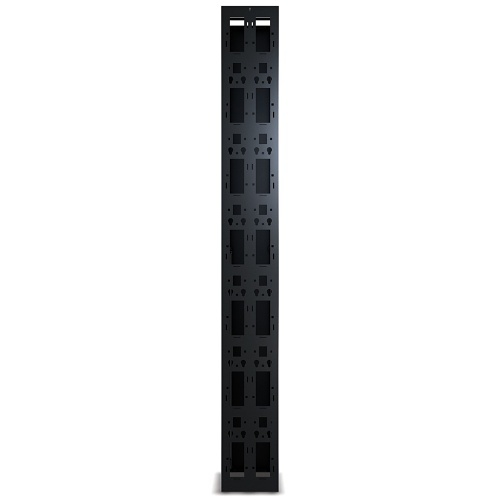

- Cable management tie-off backplate-Backplates feature multiple mounting holes for toolless accessory installation of vertical Rack PDUs and cable management accessories such as hook-and-loop cable managers for cable tie-off (AR8621) and fiber spools for excess fiber slack management (AR8444)
- Slam-to-latch full length door-Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right
- Vertical cable managers ship fully assembled-Vertical cable managers ship fully assembled reducing the amount of time required to install equipment
- Grounding connection-Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager
- Similar look-and-feel to NetShelterT enclosures-Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures
- Horizontal cable routing front-to-back-Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK
General Information
Name: APC AR8635 Vertical Cable Manager, 84"x10" Wide, Single
Category: APC by Schneider Electric, Data Comm & Networking, Cable Positioning Tools, Cable Managers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-AR8635 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AR8635 Product Name Vertical Cable Manager Product Type Cable Organizer Weight 65.04lb
Material Plastic
Color Black Depth 14.17" Height 84.02" Width 9.96"
Limited Warranty 2-Year
Compatibility APC NetShelter EnclosureAPC Open Frame Rack:2 Post4 Post Environmental Certification UL Listed Environmentally Friendly Yes Package Contents Doors, Installation Guide, Mounting hardware
