APC AR7752 VED for 750mm Wide Tall Range / Vertical Exhaust Duct Kit for SX Enclosure, White
AR7752|2G-AR7752
APC AR7752 VED for 750mm Wide Tall Range / Vertical Exhaust Duct Kit for SX Enclosure, White
AR7752|2G-AR7752
APC by Schneider Electric
APC AR7752 VED for 750mm Wide Tall Range / Vertical Exhaust Duct Kit for SX Enclosure, White
AR7752 | 2G-AR7752
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

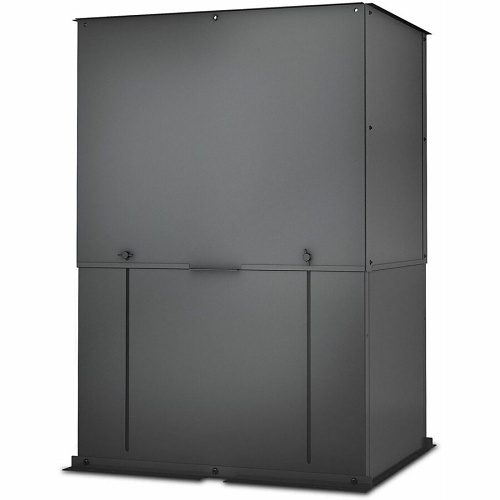

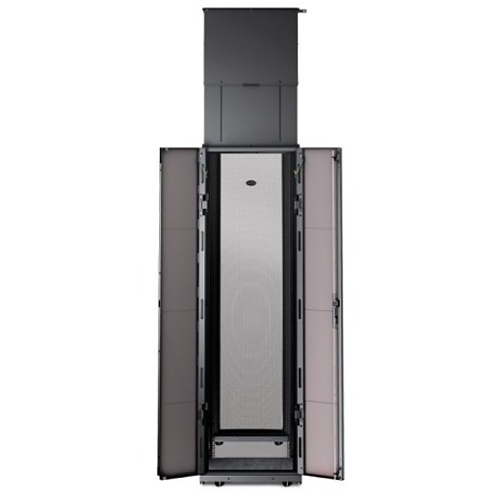

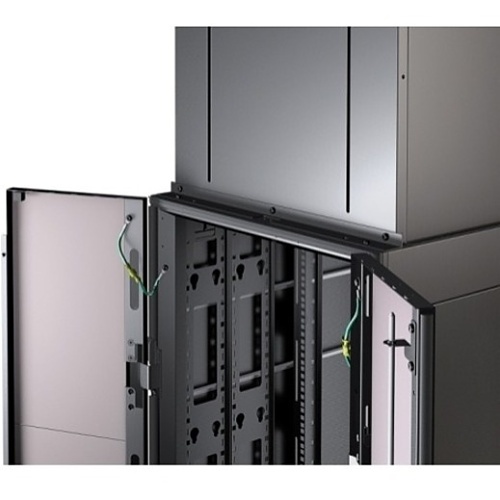

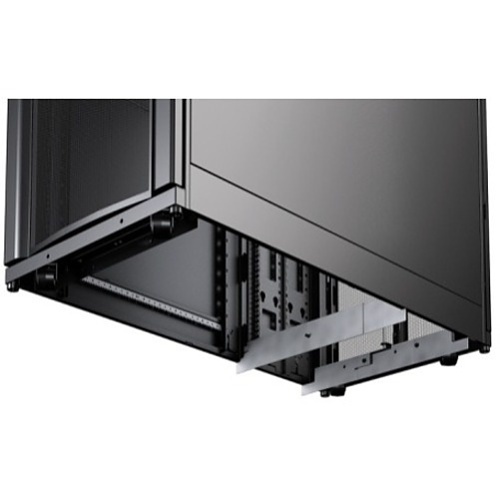

Vertical Exhaust Duct (VED) System for NetShelter SX is a low cost easy to install solution that mounts to the top rear of NetShelter enclosures to capture and return hot exhaust air to room cooling systems.
Main Features
- Optional sensors-Add sensors to compatible NetBotz Appliances for monitoring temperature, humidity, fluid, vibration, dust particles, etc
- Increased capacity-Higher rate of heat removal allows more equipment to be installed in each rack
- Ducted Exhaust System-Removes hot air from the data center to prevent re-circulation and eliminate air mixing
- Zero "U" Solution-Mounts to the rear of the rack, leaving valuable rack space for other equipment
- Efficiency-Increases the capacity of the air conditioner by supplying a warmer return air temperature
General Information
Name: APC AR7752 VED for 750mm Wide Tall Range / Vertical Exhaust Duct Kit for SX Enclosure, White
Category: APC by Schneider Electric, Data Comm & Networking, Racks & Enclosures, Rack Accessories
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-AR7752 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AR7752 Packaged Quantity 1 Product Model AR7752 Product Name Airflow Cooling System Product Type Airflow Cooling System Weight 46.52lb
Color Black Depth 17.28" Height 60" Width 22.48"
Limited Warranty 2-Year
Environmental Certification REACH Environmentally Friendly Yes Package Contents Baying Hardware, Duct panels, Foam gasket Strips, Installation Guide, Mounting Hardware, Rear Door and Bottom Sealing Kit, Roof, Roof Mounting Hardware
