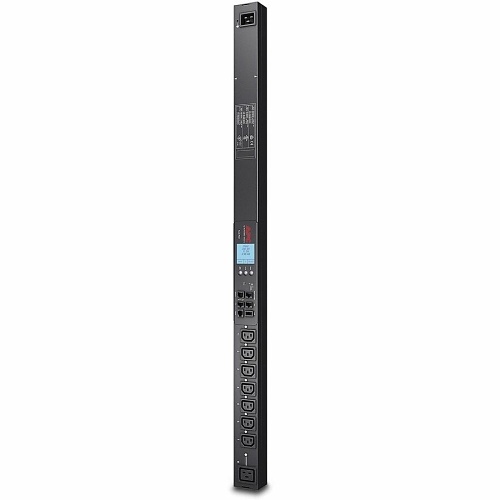

APC AP8958 Rack PDU 2G, 16A, 100-240V
AP8958 | 2G-AP8958
Please sign in to view pricing and availability and to add to cart.
Product Overview
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
Main Features
- with PDUs decisions for load balancing and minimizing extra cost can be managed
- with a built-in digital current meter avoid potential overloads via switched PDUs
- IEC 60320 C20 plug/connector type for efficient connectivity and feasible power output
- 200 V input voltage for optimal performance with maximum usability
- 100 V AC output voltage for better reliance and maximum usability
General Information
Specifications
ADI Part Number 2G-AP8958 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP8958 Product Line NetShelter Product Model AP8958 Product Name Switched Rack AP8958 8-Outlets PDU Product Series Switched Product Type PDU Weight 7.12lb
Output Voltage 100V, 200V, 208V, 230V PDU Type Switched
Depth 1.81" Height 38.90" Rack Height 0U Width 2.20"
Input Voltage 200V, 208V, 230V Plug/Connector Type IEC 60320 C20
Mount Type Rack Mount
Limited Warranty 2-Year
Country of Origin IN Environmental Certification cUL Listed, PSE, UL Listed, VCCI Class A, VDE, WEEE Environmentally Friendly Yes Package Contents - Switched Rack AP8958 8-Outlets PDU
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
