APC AP8881 NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and C19 Outlets
AP8881|2G-AP8881
APC AP8881 NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and C19 Outlets
AP8881|2G-AP8881
APC by Schneider Electric
APC AP8881 NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and C19 Outlets
AP8881 | 2G-AP8881
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

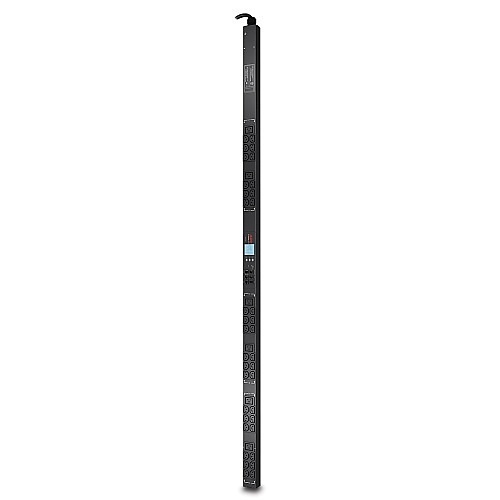

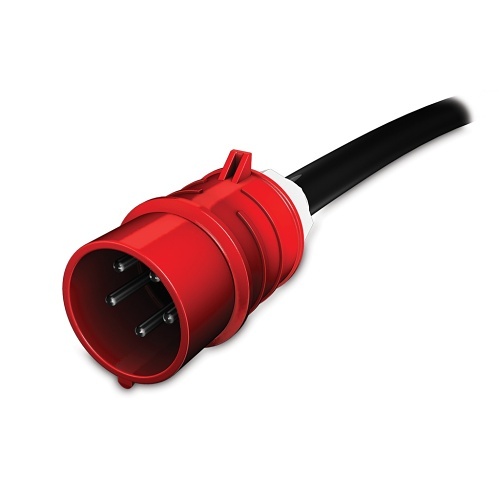

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates
General Information
Name: APC AP8881 NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and C19 Outlets
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 731304277071
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-AP8881 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP8881 Product Model AP8881 Product Name Metered AP8881 42-Outlets PDU Product Series Metered Product Type PDU Weight 14.07lb
Output Voltage 230V PDU Type Metered
Depth 1.73" Height 70.51" Mounting Orientation Horizontal, Vertical Rack Height 0U Width 2.20"
Input Voltage 400V
Mount Type Rack Mount
Limited Warranty 2-Year
Environmental Certification VDE, WEEE Environmentally Friendly Yes Package Contents - Metered AP8881 42-Outlets PDU
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
