Product Overview
Explore APC Rack Power Distribution in 3D animation.
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
Main Features
- Local and web-based monitoring-Status available to customers both in the data center and remotely

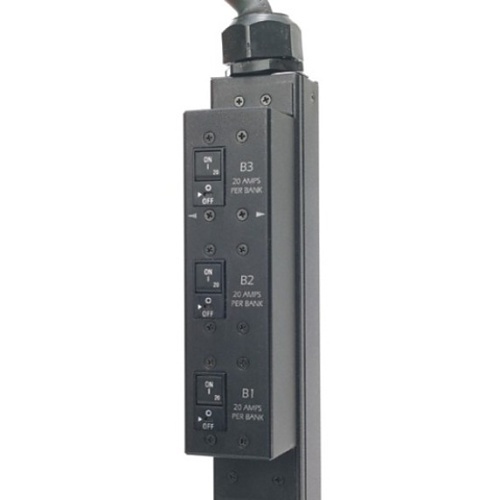

- Resettable circuit breakers-Enables a quick recovery from overload events
- Toolless Rack Mounting Capabilities-Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure

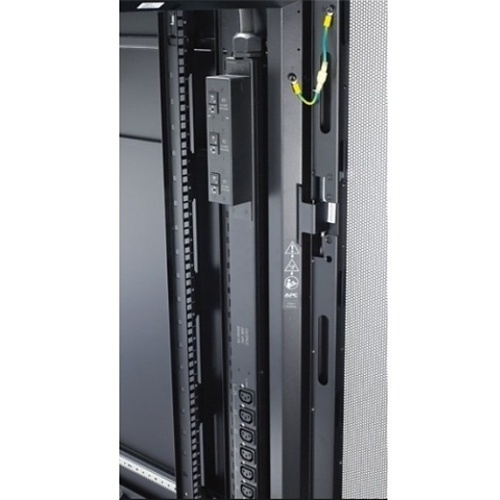

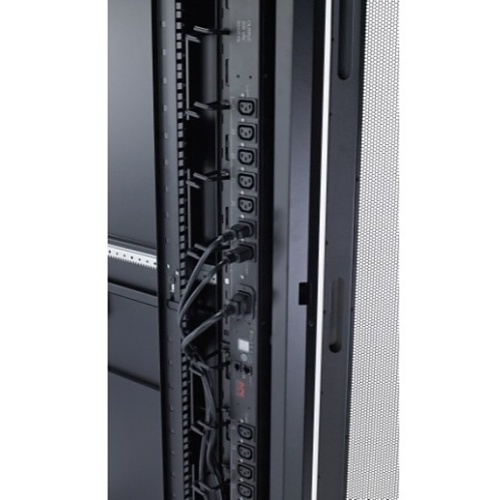

- Vertical Mounting Capabilities-Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack Units that mount vertically are optimized to fit in a NetShelter enclosures
General Information
Name: APC AP7968B Rack PDU, Switched, 12.5kW, 208V, Zero U
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-AP7968B Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP7968B Product Name Rack PDU,Switched,ZeroU,12.5kW,208V,(21)C13&(3)C19;3' Cord Product Type PDU Weight 17.81lb
Output Voltage 208V PDU Type Switched Phase Three Phase
Depth 3.50" Height 70" Rack Height 0U Width 2.20"
Input Current 35A Input Voltage 208V
Mount Type Rack Mount Protection Type Overload Protection
Limited Warranty 2-Year
Environmental Certification CSA, cUL Listed, Industry Canada, UL Listed Environmentally Friendly Yes Package Contents - Rack PDU,Switched,ZeroU,12.5kW,208V,(21)C13&(3)C19;3' Cord
- Cord retention bracket(s)
- Documentation CD
- Installation guide
- Rack mounting brackets
- RS-232 configuration cable
- Toolless mounting kit
