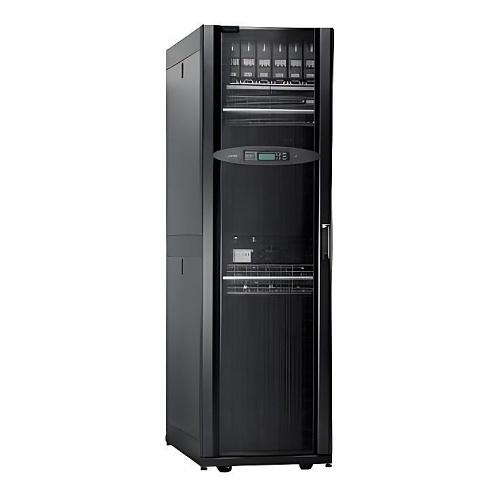

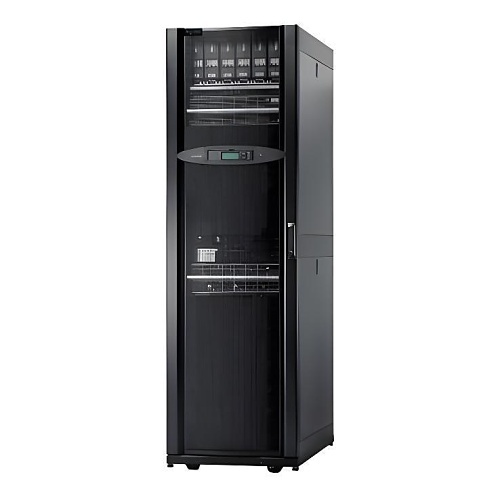

APC SY16K48H-PDNB Symmetra PX All-in-One UPS, Scalable to 48kW, 16kW, W
APC SY16K48H-PDNB Symmetra PX All-in-One UPS, Scalable to 48kW, 16kW, W

APC SY16K48H-PDNB Symmetra PX All-in-One UPS, Scalable to 48kW, 16kW, W
SY16K48H-PDNB | 2G-6K48HPDNB
Please sign in to view pricing and availability and to add to cart.
Product Overview
High performance, right-sized, modular, scalable, 3 phase UPS power protection with ultra high availability and efficiency for any size data center or high density power zone.
The APC Symmetra PX is a world class, redundant, scalable, 3 Phase UPS power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure® systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.
Main Features
- 16KW all-in-one 3 phase UPS power protection
- Modular and scalable design for data centers
- Ultra high availability and efficiency
- Redundant modules for increased reliability
- Seamless integration into modern data centers
- Self-diagnostic capabilities for easy management
- Standardized modules to reduce human error
- Scalable power and runtime as demand grows
General Information
Specifications
ADI Part Number 2G-6K48HPDNB Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SY16K48H-PDNB Product Line Symmetra PX Product Name Symmetra PX 16kW All-In-One, Scalable to 48kW, without Batteries, 400V Product Series PX Product Type Double Conversion Online UPS
Output Voltage 230V AC, 380V AC, 400V AC, 415V AC Overload Protection Yes Phase Three Phase
Maximum Operating Humidity 0.95
Minimum Storage Temperature 0.95 Thermal Dissipation 754.07W
Depth 42.1" Form Factor Tower Height 78.4" Weight 751.78 lb Width 23.6"
Input Frequency 40 Hz|70 Hz Input Voltage 380V AC, 400V AC, 415V AC Output Frequency 50 Hz|60 Hz Waveform Type Sine Wave
Limited Warranty 1-Year
Environmental Certification ISO Environmentally Friendly Yes
