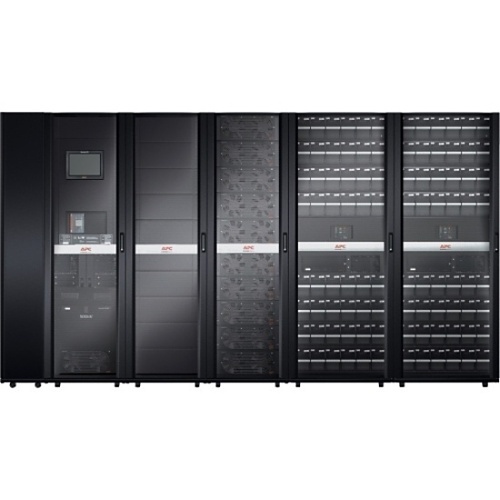

APC SY250K500DL-PD Symmetra PX 250kW Scalable to 500kW
APC SY250K500DL-PD Symmetra PX 250kW Scalable to 500kW
APC SY250K500DL-PD Symmetra PX 250kW Scalable to 500kW
SY250K500DL-PD | 2G-0K500DLPS
Please sign in to view pricing and availability and to add to cart.
Product Overview
The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules--power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability.
Main Features
- Redundant and scalable power protection
- Seamlessly integrates into modern data centers
- Modular system with dedicated components
- Easily serviceable design
- Scales power and runtime with demand
- Core power train for APC InfraStruXure systems
- Self-diagnostic capabilities
- Standardized modules reduce human error
- Increases data center reliability
General Information
Specifications
ADI Part Number 2G-0K500DLPS Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number SY250K500DL-PD Product Line Symmetra Product Model SY250K500DL-PD Product Name Symmetra PX SY250K500DL-PD 250kVA Tower UPS Product Series PX Product Type Double Conversion Online UPS Sector Intrusion Weight 10806lb
Backup/Run Time (Full Load) 6.1-Minute Backup/Run Time (Half Load) 17.6-Minute Output Voltage 400V AC, 480V AC Overload Protection Yes Phase Three Phase Receptacle Detail 1 x Hard Wire 4-wire, 1 x Hard Wire 5-wire Receptacle Type Hard Wire 4-wire, Hard Wire 5-wire
Battery Chemistry Lead Acid Battery Life 8 Year Battery Recharge Time 8-Hour Maximum Operating Humidity 0.95
Energy Star Yes
Thermal Dissipation 9069.37W
Depth 42" Height 78.4" Width 12.1'
Input Frequency 70Hz Input Voltage 220V AC Output Frequency 60Hz Plug/Connector Type Hard Wire 4-wire, Hard Wire 5-wire Waveform Type Sine Wave
Limited Warranty 1-Year
Environmental Certification UL Environmentally Friendly Yes Package Contents - Symmetra PX SY250K500DL-PD 250kVA Tower UPS
- Assembly Service
- Installation Guide
- Network Management Card
- Start-Up Service
- User Manual
