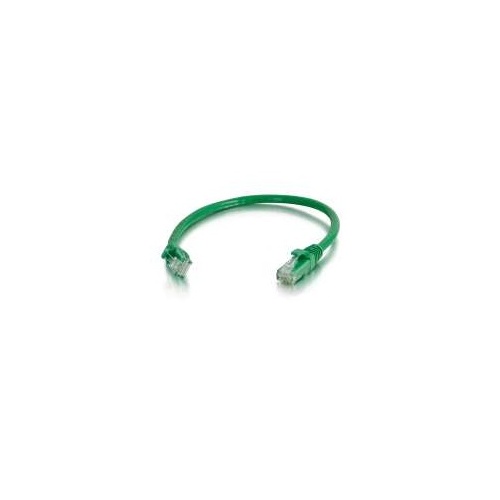

C2G CG27176 C2G CG-27176 CAT6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, 50' (15.2m), Green
CG27176|2D-CG27176
C2G CG27176 C2G CG-27176 CAT6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, 50' (15.2m), Green
CG27176|2D-CG27176
C2G by Legrand
C2G CG27176 C2G CG-27176 CAT6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, 50' (15.2m), Green
CG27176 | 2D-CG27176
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
With Cables To Go's Cat6 550Mhz Snagless Patch Cables you can stay ahead of the game with the use of this high-speed cabling to distribute data, voice and video. These cables will deliver stable performance to 550 MHz. Each meets EIA/TIA Cat 6 TIA/EIA- 568-B-2.1, draft 9 standards. These cables will handle bandwidth intensive applications up to 550 Mhz and beyond and drastically reduce both impedance and structural return loss (SRL) as compared to standard 100 Mhz wire! Constructed with high-quality cable and a shortened body plug, this design will keep Near-End Crosstalk (NEXT) levels to a minimum. The molded, snag-free boot prevents unwanted cable snags during installation and provides strain-relief. Cables To Go Cat6 550Mhz Snagless Patch Cables are available in a variety of colors to easily color-code your network installation. \r\n- Connector: 50-micron gold plated RJ-45 Male to Male \r\n- Conductor: 24 AWG Stranded Copper \r\n- Jacket: PVC \r\n- Molded, Snag-Free boot prevents unwanted cable snags \r\nApplications: \r\n- Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3) \r\n- 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN \r\n- 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM \r\n- Voice; T1 \r\n- High bandwidth applications such as 622 ATM, Wideband\r\n- Designed For: Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and other twisted-pair applications \r\n- Standard: Category 6 TIA/EIA- 568-B-2.1, draft 9
Main Features
- High-speed Cat6 550MHz cabling
- Meets EIA/TIA Cat 6 standards
- Reduces impedance and SRL
- Snag-free boot for easy installation
- 50-micron gold plated RJ-45 connectors
- 24 AWG stranded copper conductor
- PVC jacket for durability
- Supports Gigabit Ethernet and more
- Ideal for network adapters and routers
- Available in various colors
General Information
Name: C2G CG27176 C2G CG-27176 CAT6 Snagless Unshielded (UTP) Ethernet Network Patch Cable, 50' (15.2m), Green
Category: C2G by Legrand, Wire & Cable, Pro AV, Network Patch Cords, Commercial Connector Cables, Pro Patch Cables, Category 6 Patch Cords, Pro USB Cables
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 2D-CG27176 Brand Name C2G by Legrand Manufacturer Part Number CG27176
American Wire Gauge 24AWG Cable Type Category 6 Connector on First End RJ-45 Male Connector on Second End RJ-45 Male Solid or Stranded Stranded
NDAA Compliant Yes TAA Compliant No
Cable Length 50' Color Green
Environmental Certification REACH, ROHS, Prop 65, TSCA, NDAA 889
