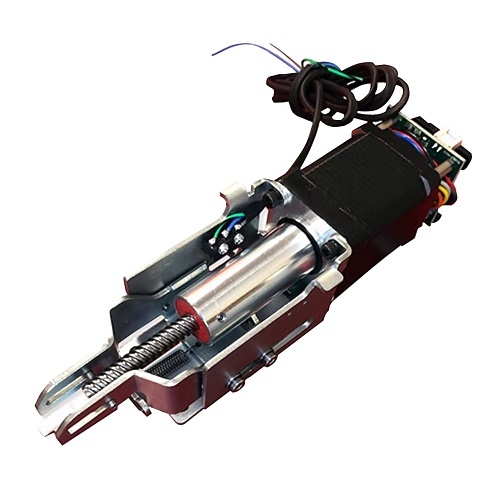

Command Access MLRK1-VD Motorized Latch Retraction Kit for Von Duprin 33/35 or 98/99 Series Exit Device
MLRK1-VD|0L-MLRK1VD
Command Access MLRK1-VD Motorized Latch Retraction Kit for Von Duprin 33/35 or 98/99 Series Exit Device
MLRK1-VD|0L-MLRK1VD
Command Access Technologies
Command Access MLRK1-VD Motorized Latch Retraction Kit for Von Duprin 33/35 or 98/99 Series Exit Device
MLRK1-VD | 0L-MLRK1VD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The MLRK1-VD is a practical and cost-effective way to convert a mechanical Von Duprin series device to a motorized latch retraction device, while maintaining the listing. Our easy-to-install motor-driven kit installs in moments and includes a built-in request to exit (US ONLY). It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the VD features an updated MM5 module, energy conscious while still being capable of getting tough jobs done.
Main Features
- Next Generation MM5 Smart Module - On board diagnostics
- With audible feedback for adjustment and power issues
- “PTS” - 2 second electronic adjustment for easy post
- Installation adjustment
- Simplified further with a push button to engage programming and shorter program sequence
- Standard Torque Mode - Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
- Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
- Up to 300’ wire run with 2-18ga wire - Long wire runs
- Provides installer with convenience of placing the Command locking hardware power supply in a centralized location;i.e. the same closet as the access control panel
- 6” cable with robust Quick Molex Connector for MM5 module to 6’ Power lead to easily connect to power supply lead
General Information
Name: Command Access MLRK1-VD Motorized Latch Retraction Kit for Von Duprin 33/35 or 98/99 Series Exit Device
Category: Command Access Technologies, Access Control, Locking Devices, Latch Retraction Kits
UPC Code: 197163054107
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number 0L-MLRK1VD Brand Name Command Access Technologies Manufacturer Part Number MLRK1-VD Product Name Kit for VD 33/35 & 98/99. EU 24V with REX Product Type Kit Start Current 900mA
Input Voltage 24V DC
Compatibility VD 33/35 and 98/99
